Product Details:
|
| Name: | Planetary Four-cylinder Ball Mill | Model: | Planetary Four-cylinder |
|---|---|---|---|
| Type: | XPML- Φ120×3 | Function: | Multi-grain Adjustable |
| Advantage: | Smooth Shifting | Purpose: | Fine And Uniform Discharge Particle Size |
| Attributes: | Laboratory Grinding Equipment | ||
| High Light: | 120mm Laboratory Grinding Mill,200g Laboratory Grinding Mill,5mm planetary ball milling machine |
||

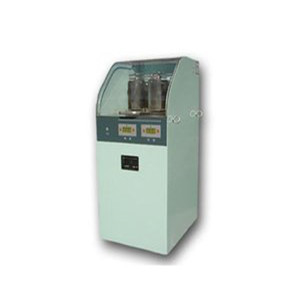

Planetary four-cylinder mill XPML- Φ100×4
Introduction Introduction:
XPML-Φ100×4 planetary four-cylinder grinder is a kind of high-efficiency, multi-grain adjustable grinding equipment which is improved and designed on the basis of absorbing foreign advanced experience. Because the grinding body is in the centrifugal force field of 12-13g for grinding motion, the grinding efficiency is high, and the discharge particle size is fine and uniform. The equipment adopts AC frequency conversion technology, which can realize the stepless speed regulation of the grinding disc, and has a wide speed regulation range, stable speed change, and a timing device to ensure the repeatability of grinding conditions. In addition, different specifications of quenched stainless steel grinding cylinder or agate material, corundum and other grinding cylinders can be selected to be suitable for grinding various materials, especially
It is suitable for grinding and superfine grinding of iron-avoiding materials.
Technical Parameters:
| project | Unit | XPML- Φ100×4 |
| Number of grinding cylinders | piece | 4 |
| Turntable speed | r/min | 100-400 Variable frequency stepless speed regulation |
| Grinding drum speed | r/min | 224-896 Variable frequency stepless speed regulation |
| Grinding drum loading amount per drum | g | 200 ,150 ,100 ,50 (Symmetrical options available) |
| Charge particle size | mm | ≤5； (Max≤10) |
| Product particle size | mm | ≤0.074 |
| Inverter frequency range | Hz | 10-35 |
| Motor model | kw | YD90-4L 1.5 |
| Motor speed | r/min | 1400 |
| Dimensions (L×W×H) | mm | 600×666×1067 |
| reference weight | Kg | 240 |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
FAQ
1: What's the standard length of your profiles and tube?
A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.
Q2: What's your MOQ?
A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.
Q3: what is your payment terms?
A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.
Q4: What's the lead time for small order and mass production?
A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.
Q5: What certification do you have?
A: We have ISO 9001:2008 certificate.
