Multi Purpose Continuous Laboratory Vacuum Filter Filtration Equipment

I'm Online Chat Now

Multi Purpose Continuous Laboratory Vacuum Filter Filtration Equipment

Multi Purpose Continuous Laboratory Vacuum Filter Filtration Equipment
Multi Purpose Continuous Laboratory Vacuum Filter Filtration Equipment

Large Image :  Multi Purpose Continuous Laboratory Vacuum Filter Filtration Equipment

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: Multi-purpose Vacuum Filters
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

Multi Purpose Continuous Laboratory Vacuum Filter Filtration Equipment

Name: Multi Purpose Vacuum Filter Filtration Equipment Model: Multi Purpose Vacuum Filters
Certification: Filtration Equipment Type: XTLZ
Function: Continuous Filtering Application: Dewatering, Solid-Liquid Separation
Machine: Laboratory Equipment Power: 1.5kw
High Light:

multi purpose laboratory vacuum filter


continuous laboratory vacuum filter


multi purpose continuous lab vacuum filter

Multi Purpose Vacuum Filter Filtration Equipment

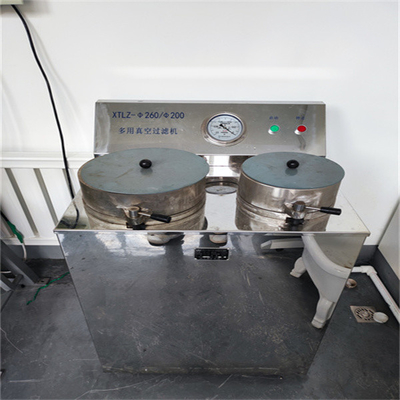

XTLZ-Φ260/Φ200 multi-purpose vacuum filter is a laboratory-type filtration equipment that can filter intermittently or continuously. It can be used as product dehydration and solid-liquid separation. It has simple structure, convenient operation and maintenance, high filtration efficiency and strong adaptability.


Woking Principle

Disc vacuum filter is a latest lab filtering equipment, It is suitable for use in laboratories and small factories in the
departments of mineral processing, metallurgy, geology, chemical industry, building materials, petroleum, papermaking grand artificial crystal and to the dehydration and solid-liquid separation.

Pulp Density 10-30%
Max Feeding Size 0.5mm
Disc Capacity 0.64L-4.2L
Filtering Sample Weight 500g
Filtering Time 3-5 minutes


Technical Parameters:

 Name Value  Unit



Filter plate

 Stationary Filter pl ate



Mobile Filter plate Φ80




 Vacuum pump


 Air displacement

 vacuum level
( m3 /h) (L/s) (mm)
19.3 5.5 440
14.4 4 520
7.2 2. 600
0 0 650









Type Y90S-2
 Power 1.5 kw
 Outline Size 657×550×1042 mm
Weight 120 kg


Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
Multi Purpose Continuous Laboratory Vacuum Filter Filtration Equipment 0

1: What's the standard length of your profiles and tube?

A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.


Q2: What's your MOQ?

A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.


Q3: what is your payment terms?

A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.


Q4: What's the lead time for small order and mass production?

A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.


Q5: What certification do you have?

A: We have ISO 9001:2008 certificate.
