Product Details:
|
| Name: | Lab Vibrating Disc Mill Use In Geology, Mining | Attributes: | Lab Vibrating Disc Mill |
|---|---|---|---|
| Purpose: | Chemicals Processing | Voltage: | 380v |
| Dimension(L*W*H): | 640*560*730 | Weight (KG): | 200 KG |
| Key Selling Points: | Lab Mill Machine | Application: | Use In Geology, Mining |
| High Light: | 380v laboratory vibrating disc mill,mining laboratory vibrating disc mill,380v laboratory disc mill |
||

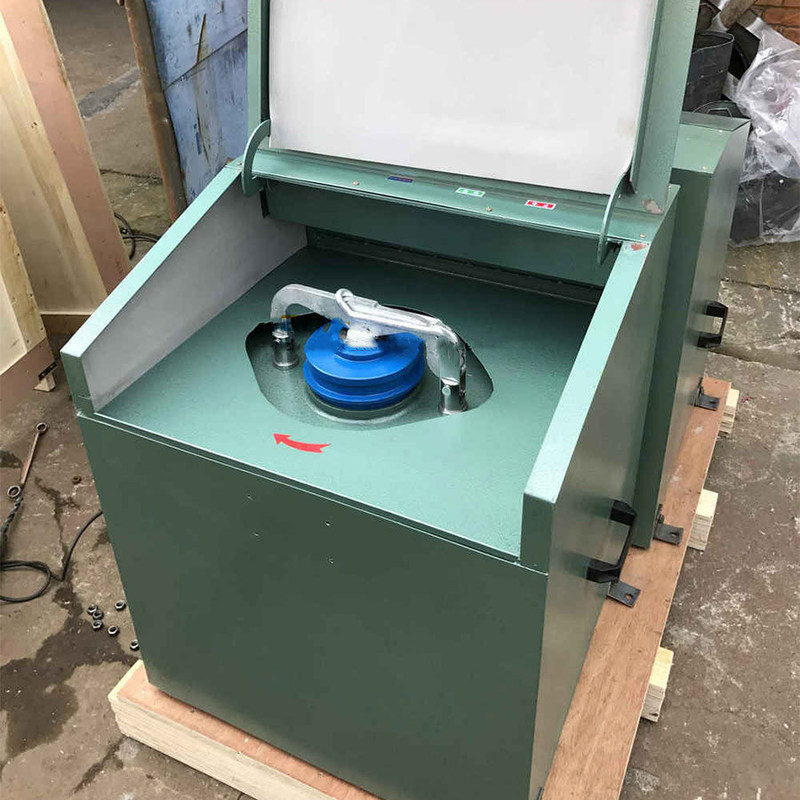

Lab Vibrating Disc Mill Use in Geology, Mining
Main uses and characteristics:
laboratory sealed sampling pulverizer mill sample grinder for lab use is a small lab grinding machine for grinding the
ore/material samples into powder, which has been widely used in the laboratory of the geology, mining, metallurgy, coal, power, chemistry and building industries, for the none pollution sample testing.
GJ type sealed series laboratory sample preparation pulverizer adopts the "anti-loosening device for pressing the material bowl", which is light and reliable. Fully sealed, no dust spillage, no need for exhaust and dust removal. High-frequency vibration grinding, high grinding efficiency, uniform particle size, no mixing, no need to sieve and divide. Users can choose different varieties according to the sample size; the product is small in size, compact in structure, no installation, low noise < 60 decibels.
Parameter
| The main technical parameters | ||||||
| parameter item Specification model" |
Number of samples (pieces) | Loading particle size (mm) | Loading weight (g/pot) | Crushing time (minutes) | Discharge particle size (mesh) | Power (kW) |
| GJ100-1 | 1 | <13 | 100×1 | <2 | 120-200 | 1.1 |
| GJ100-2 | 2 | <13 | 100×2 | <2 | 120-200 | 1.1 |
| GJ100-3 | 3 | <13 | 100×3 | <2 | 120-200 | 1.5 |
| GJ100-4 | 4 | <13 | 100×4 | <3 | 120-200 | 1.5 |
| GJ100-5 | 5 | <13 | 100×5 | <3 | 120-200 | 1.5 |
| GJ100-7 | 7 | <13 | 100×7 | <3 | 120-200 | 1.5 |
| GJ200-1 | 1 | <20 | 200×1 | <3 | 120-200 | 1.5 |
| GJ200-2 | 2 | <20 | 200×2 | <3 | 120-200 | 1.5 |
| GJ200-3 | 3 | <20 | 200×3 | <3 | 120-200 | 1.5 |
| GJ200-4 | 4 | <20 | 200×4 | <3 | 120-200 | 1.5 |
| GJ400-1 | 1 | <26 | 400×1 | <3 | 120-200 | 1.5 |
| GJ400-2 | 2 | <26 | 400×1 | <3 | 120-200 | 1.5 |
| GJ400-3 | 3 | <26 | 400×1 | <3 | 120-200 | 1.5 |
| GJ400-4 | 4 | <26 | 400×1 | <3 | 120-200 | 1.5 |
| GJ500-1 | 1 | <26 | 500×1 | <3 | 120-200 | 1.5 |
| GJ000-1 | 2 | <26 | 1000×1 | <3 | 120-200 | 1.5 |
| GJ100/200-Ⅰ | Separate system | <13/<12 | 100/200 | <2 | 120-200 | 1.5 |
| GJ300/400-Ⅱ | Separate system | <23/<26 | 300/400 | <2 | 120-200 | 1.5 |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
