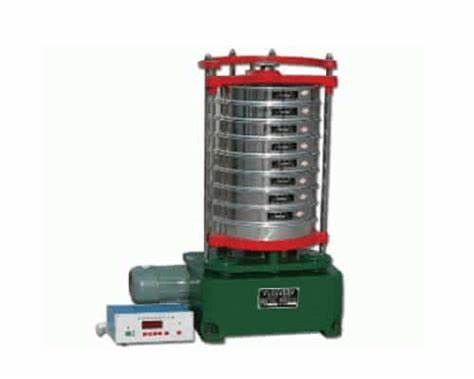

Rotary Multi Layer Vibrating Sand Screening Machine 1.1kw

I'm Online Chat Now

Rotary Multi Layer Vibrating Sand Screening Machine 1.1kw

Rotary Multi Layer Vibrating Sand Screening Machine 1.1kw
Rotary Multi Layer Vibrating Sand Screening Machine 1.1kw

Large Image :  Rotary Multi Layer Vibrating Sand Screening Machine 1.1kw

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: rotary vibrating screen
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

Rotary Multi Layer Vibrating Sand Screening Machine 1.1kw

Name: Rotary Vibrating Screen Type: YZS-φ600 Type
Model: Rotary Application: Food Industry
Material: Sugar, Salt, Feature: Multi Layer Vibrating Screen
Motor: The Latest Vertical Vibration Motor YZS-1000: 1.1kw
High Light:

rotary multilayer vibrating sand screening machine


1.1kw vibrating sand screening machine


1.1kw vibratory sand screening machine

Rotary Multi Layer 1.1kw Vibrating Sand Screening Machine


Main uses and features:

The multi-layer vibrating screen machine of the normal specification of our company uses stainless steel SUS27 (#304) for the parts where the body and raw materials are in contact, and the machine base uses steel S.S.41.


1. Working principle: Using the latest vertical vibration motor, the motor generates three-dimensional vibration of horizontal, vertical and inclined, and then directly transmits this vibration to the screen surface. By changing the relative spatial angle of the upper and lower polarizers of the motor, different exciting forces are generated and the moving direction of the material is changed. The general characteristics of oscillator tuning are described below:


2. Scope of application:
1. Chemical industry: resin powder, pigment, washing powder, micropowder, paint, soda ash, citric acid, etc.
2. Abrasive and ceramic industries: alumina, quartz sand, mud, spray soil particles, etc.;
3. Food industry: sugar, salt, alkali, monosodium glutamate, milk powder, soy milk, yeast, fruit juice, soy sauce, vinegar, etc.;
4. Paper industry: coating paint, clay mud, black and white
liquid, waste liquid, papermaking liquid, waste water recycling, etc.;
5. Metallurgical industry: titanium oxide, zinc oxide, electromagnetic materials,
Metal powder, electrode powder, etc.;
6. Pharmaceutical industry: traditional Chinese medicine powder, traditional Chinese medicine liquid, western medicine liquid, western medicine
Medicine liquid, Chinese and Western medicine granules, etc.;
7. Environmental protection: garbage, human and animal excrement and urine, waste oil, food waste water, waste water processing, etc.



Main technical parameters of YZS type rotary vibrating screen (1)
Parameter item Power (kw) Sceen diameter (mm) Dimensions (mm) Number of network lavers
YZS-400 -2s
0.25 350 580×580×560
YZS-600 -2s
0.55 550 800×800×750
YZS-800 -2s
0.75 750 900×900×750
YZS-1000 -2s
1.1 920 1160×1160×810
YZS-1200 -2s
1.5 1120 1360×1360×885
YZS-1500 -2s
2.2 1420 1850×1850×990
YZS-1800 -2s
2.2 1720 2200×2200×1050


Main technical parameters of YZS type rotary vibrating screen (2)
Center of gravity angle Featured Effects The main purpose
The raw material system flows straight from the center to the circumferential direction Rough grading classify the materials that are easy to sieve in large quantities, and sieve coarse particles
15° Start whirlpool movement General screening
85° Longest vortex distance Precise classification, used to differentiate raw materials with high cohesion and high moisture content
100° Centralized raw materials Special Purpose



Company profile

Y&X Beijing Technology Co., Ltd. was founded in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise that integrates scientific research, design, new product development, manufacturing and production with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide unique expertise to overseas mining companies.

The company specializes in the research and supply of mineral processing equipment and supplies, including mineral processing equipment and mineral processing laboratory equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, construction materials, environmental protection, non-ferrous and non-ferrous mines, research departments in industries such as clothing industries, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly includes crushing, grinding, screening, sorting, magnetic separation, flotation, testing, sample preparation, purification, electrolysis analysis, rocking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia, Tanzania, Nigeria and other countries and regions.

The business has passed IS09001 management system certification, and the product quality is in line with the relevant technical standards announced by the government and the business.

Rotary Multi Layer Vibrating Sand Screening Machine 1.1kw 0


FAQ to save your precious time!


Q1: What's the standard length of your profiles and tube?

A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.


Q2: What's your MOQ?

A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.


Q3: what is your payment terms?

A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.


Q4: What's the lead time for small order and mass production?

A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.


Q5: What certification do you have?

A: We have ISO 9001:2008 certificate.
