FG Type Single Spiral Classifier with 30kg/h Processing Capacity for Geological Applications
  • name

FG Type Single Spiral Classifier with 30kg/h Processing Capacity for Geological Applications

MOQ: 1
Price: negotiate
Standard Packaging: Cartons
Delivery Period: 1-3 working day
Payment Method: T/T,L/C
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Certification
ISO9001
Model Number
spiral classifier
Name:
Zircon Sand Separation Machine Mining Spiral Classifier Sand Screw
Material:
Zircon Sand
Keyword:
Spiral Classifier
Purpose:
Laboratory Equipment
Classification:
Mining Spiral Classifier
Application:
Geological
Type:
Single
Appertain:
Laboratory
Highlight:

mineral copper ore spiral classifier

,

150×1200 spiral classifier

,

150×1200 screw classifier

Product Description

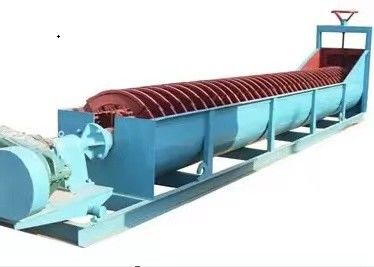

Mineral Copper Ore Spiral Classifier Metal Mine Processing Line Separation Machine
Product Overview
Spiral Classifiers Low Price Mineral Copper Ore Screw Classifier Metal Mine Processing Line Separation Machine
Uses and Characteristics
This machine is suitable for dewatering, de-sludging, dry and wet classification of non-metallic ores in geological, metallurgical and other facilities and beneficiation laboratories. By using the principle of different solid particle sizes, different specific gravity and different settling speed in the liquid, the fine mineral particles float in the water and overflow, and the coarse mineral particles sink to the bottom of the tank, that is, they are pushed out. up the auger, the powder in the mill is filtered separately, and then the coarse material is screwed into the inlet. The lifting device is divided into electric and manual.
Technical Specifications
Main technical parameters of FG type single spiral classifier:
Project Unit FG-100×1200 FG-150×1200 FG-200×1650
Spiral size mm Φ100×1200 Φ150×1200 Φ200×1650
Pitch mm 80 100 120
Groove inclination angle (°) 10°~30°
Spiral speed r/min 18,23,30
Processing capacity kg/h 30 60 80
Motor Power Kw 0.4,0.25 0.6,0.4 1.0,0.6
Voltage V 220,380
Dimensions mm 1500×320×700 1574×320×740 1600×350×750
Weight kg 66 76 82
Spiral Classifier Machine - Mineral Processing Equipment
Product Description
Spiral classifier is one Types of Classifiers in Mineral Processing, gold mining equipment, Zircon Sand Separation Machine, Silica Sand Washing Plant machine, Beach Sand Processing Plant machine, based on user requirements, it can be divided into single and double spiral classifier. Depend on specific gravity of solid particles, so different sedimentation velocity in a liquid principle, spiral classifier is a mechanical grading equipment. Feed mill can grind the powder level in the filter, and then use the coarse material spiral piece rotary vane screwed mill feeder to filter out fine material discharged from the overflow tube. Spiral Screw Classifier referred grader.
Company Profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia, Tanzania, Nigeria and other countries and regions.
Y&X Beijing Technology Co., Ltd. - Manufacturing Facility
Frequently Asked Questions
Q1: What's the standard length of your profiles and tube?
A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.
Q2: What's your MOQ?
A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.
Q3: what is your payment terms?
A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.
Q4: What's the lead time for small order and mass production?
A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.
Q5: What certification do you have?
A: We have ISO 9001:2008 certificate.
