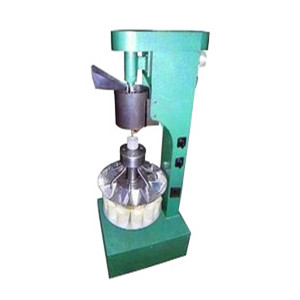

XSHF23 90kg 4L Spiral Classifier Wet Sample Divider Machine

I'm Online Chat Now

XSHF23 90kg 4L Spiral Classifier Wet Sample Divider Machine

XSHF23 90kg 4L Spiral Classifier Wet Sample Divider Machine
XSHF23 90kg 4L Spiral Classifier Wet Sample Divider Machine

Large Image :  XSHF23 90kg 4L Spiral Classifier Wet Sample Divider Machine

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: wet sample divider
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

XSHF23 90kg 4L Spiral Classifier Wet Sample Divider Machine

Name: Wet Sample Divider Model: Wet Sample
Attributes: Sample Divider Type: XSHF23
Suitable For: Laboratory Use For Equal Reduction Of Pulp And Wet Sample Separation Of Test Products Application: Building Materials, Chemicals
Industry: Production Unit Wieght: ≤90kg
High Light:

90kg Spiral Classifier


4L Spiral Classifier


120W sample divider machine

XSHF23 wet sample divider


Main uses and features:
XSHF 2-3 wet sample divider is suitable for laboratory use for equal reduction of pulp and wet sample separation of test products. Small samples that remain representative in terms of solids content, particle size composition and chemical composition can be obtained by wet sampler.


Scope of application:

XSHF2-3 wet sample separator is an equipment for wet shrinkage and separation of ore pulp in metallurgy, geology, building materials, chemical industry, coal and other industrial sectors. The relative error of weight is less than or equal to 2%.



The main technical parameters
parameter item Unit XSHF2-3Type wet sample divider
reduction ratio   once for12,6,4,3,2
Weight relative error   ≤2%
(When the reduction ratio is 6 or less)
Feed slurry concentration range   5-50%
Adaptable feed particle size range mm <0.5
Processing capacity L/min ≤2
Effective volume of mixing tank L 4
stirring motor power w 120
Rotating speed r/min 1390
Stirring impeller speed r/min ≤568
Distributor motor power w 90
Distributor revolutions   40
Total power consumption of the device   210
Dimensions (L×W×H)   550×420×1200
weight   ≤90



Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
