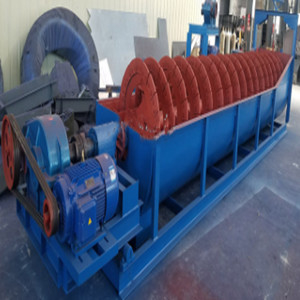

Gold Mining Laboratory Spiral Classifier Machine For Concentrator Laboratories

Gold Mining Laboratory Spiral Classifier Machine For Concentrator Laboratories

MOQ: 1
Price: negotiate
Standard Packaging: Cartons
Delivery Period: 1-3 working day
Payment Method: T/T,L/C
Detail Information
Place of Origin
China
Brand Name
Y&X
Certification
ISO9001
Model Number
spiral classifier
Name:
Spiral Classifier
Type:
FG Type
Model:
Single Spiral
Structure Type:
Horizontal
Classification:
Classifier
Application:
Laboratory
Feature:
Single
Highlight:

120mm Spiral Classifier

,

30kg/h Spiral Classifier

,

60kg/h gold mining classifiers

Product Description
Gold mining laboratory FG type single spiral classifier
Where this classifier fits in gold ore testing

This FG type single spiral classifier is a benchtop unit for gold ore slurry work in geological survey units, metallurgical test rooms and concentrator laboratories. It dewaters, deslimes and grades non-metallic and gold-bearing pulp before gravity separation, flotation or assay sampling, so the test sample reaching the next stage carries the particle size range your flowsheet assumes.

Separation relies on how particles behave in water rather than on screens. Particles of different size and specific gravity settle at different speeds, so the fine fraction stays in suspension and overflows the tank lip with the water, while the coarse fraction settles on the tank bottom and is lifted out by the rotating screw. Mill discharge can therefore be graded and returned to the feed port in the same pass.

The lifting device is offered in two versions, electric and manual, so a laboratory can match it to how often the screw has to be raised during a test programme.

Technical parameters
FG type single spiral classifier specifications
Project Unit FG-100×1200 FG-150×1200 FG-200×1650
Spiral size mm Φ100×1200 Φ150×1200 Φ200×1650
Pitch mm 80 100 120
Groove inclination angle (°) 10°~30°
Spiral speed r/min 18,23,30
Processing capacity kg/h 30 60 80
Motor Power Kw 0.4,0.25 0.6,0.4 1.0,0.6
Voltage V 220,380
Dimensions mm 1500×320×700 1574×320×740 1600×350×750
Weight kg 66 76 82
Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.

Gold Mining Laboratory Spiral Classifier Machine For Concentrator Laboratories

FAQ to save your precious time!

Q1: Can this classifier handle gold ore pulp?

A: Yes. It is used for dewatering, desliming and dry-wet grading of non-metallic and gold-bearing ore pulp in geological and metallurgical laboratories and concentrator test rooms. Because particles separate by size, specific gravity and settling speed rather than by a fixed screen opening, slimes and coarse sands are split in one pass, which is why the unit is often placed ahead of gravity concentration or flotation tests.

Q2: How do I pick between FG-100x1200, FG-150x1200 and FG-200x1650?

A: Base the choice on the pulp volume per test. FG-100x1200 with a Φ100 mm screw moves about 30 kg/h on a 0.4/0.25 Kw motor and weighs 66 kg, FG-150x1200 with a Φ150 mm screw moves about 60 kg/h on 0.6/0.4 Kw and weighs 76 kg, and FG-200x1650 with a Φ200 mm screw moves about 80 kg/h on 1.0/0.6 Kw and weighs 82 kg. All three run on 220 V or 380 V, use a tank inclination of 10°~30° and a screw speed of 18, 23 or 30 r/min.

Q3: What about the lifting device, spares and support?

A: Electric and manual lifting devices are both available, please confirm which one fits your laboratory when ordering. Spare screws, wearing plates and drive components are supplied, each unit is tested before shipment, and an operation manual with remote technical support is included.

Send us your ore type, target capacity and supply voltage, and our engineers will confirm the matching FG classifier model and lifting device.
