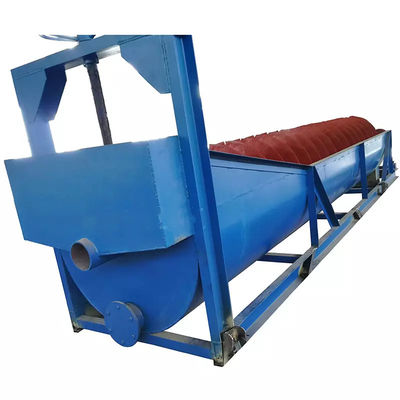

Low Maintenance Cost Laboratory Use Single Spiral Classifier Screw Sand Washer
  • name

Low Maintenance Cost Laboratory Use Single Spiral Classifier Screw Sand Washer

MOQ: 1
Price: negotiate
Standard Packaging: Cartons
Delivery Period: 1-3 working day
Payment Method: T/T,L/C
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Certification
ISO9001
Model Number
spiral classifier
Name:
Laboratory Screw Type Spiral Sand Washer Spiral Chute Classifier
Type:
Screw Type
Attributes:
Spiral Chute Classifier
Classification:
Laboratory Machine
Purpose:
Sand Washer
Output Circulating Load::
143-261 T/24h
Feature:
Single
Key Selling Points:
Low Maintenance Cost
Highlight:

60 kg/h spiral sand washer

,

220V spiral chute classifier

,

ISO9001 Spiral Chute Classifier

Product Description
Screw Type Spiral Sand Washer Spiral Chute Classifier Laboratory

Laboratory Screw Type Spiral Sand Washer Spiral Chute Classifier

Uses and Characteristics
  • Suitable for dehydration, desliming, dry and wet classification of non-metallic ores in geological, metallurgical and other units and concentrator laboratories
  • Operates on the principle of different solid particle sizes, specific gravity, and settling speeds in liquid
  • Fine mineral particles float in water and overflow, while coarse mineral particles sink into the tank bottom
  • Coarse material is pushed up by the screw and filtered separately from mill powder
  • Lifting device available in electric and manual options
Technical Parameters
Project Unit FG-100*1200 FG-150*1200 FG-200*1650
Spiral size mm Φ100*1200 Φ150*1200 Φ200*1650
Pitch mm 80 100 120
Groove inclination angle (°) 10°~30°
Spiral speed r/min 18,23,30
Processing capacity kg/h 30 60 80
Motor Power Kw 0.4,0.25 0.6,0.4 1.0,0.6
Voltage V 220,380
Dimensions mm 1500*320*700 1574*320*740 1600*350*750
Weight kg 66 76 82
Company Profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional services for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipment, including mineral processing equipment and laboratory mineral processing equipment. Products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, research departments in industries such as dressing plants, and mineral processing laboratories in colleges and universities.

Laboratory Screw Type Spiral Sand Washer equipment
Frequently Asked Questions
Q1: What's the standard length of your profiles and tube?
A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.
Q2: What's your MOQ?
A: We have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handling cost purpose.
Q3: What is your payment terms?
A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.
Q4: What's the lead time for small order and mass production?
A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.
Q5: What certification do you have?
A: We have ISO 9001:2008 certificate.
