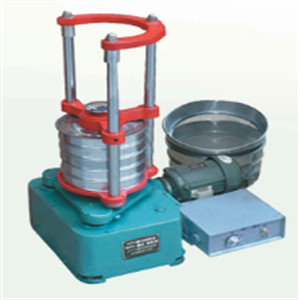

Sand Top Impact Vibrating Screen Machine For Grinding Wheel

I'm Online Chat Now

Sand Top Impact Vibrating Screen Machine For Grinding Wheel

Sand Top Impact Vibrating Screen Machine For Grinding Wheel
Sand Top Impact Vibrating Screen Machine For Grinding Wheel

Large Image :  Sand Top Impact Vibrating Screen Machine For Grinding Wheel

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: top impact vibrating screen
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

Sand Top Impact Vibrating Screen Machine For Grinding Wheel

Name: Top Impact Vibrating Screen Type: SDB Type
Purpose: Grinding Wheel Advantage: High Precision
Test: The Sand And Gravel Aggregate Test Screen Frame Size: Φ200mm
Mesh Size: 20-200Target Number Of Swings: 221Times/min
High Light:

12.5mm Vibrating Screen Machine


8mm Vibrating Screen Machine


sand vibrating screen for grinding wheel

SDB type top impact vibrating screen machine


Main uses and advantages:

This machine is widely used in laboratories of light and heavy industry, geology, metallurgy, chemical industry, building materials, coal, mining, grinding wheel, ceramics, medicine, scientific research and other industries. The laboratory is an ideal equipment for classifying and screening material particles. . Advantages: It has the characteristics of high precision, fast speed, manpower saving, low noise and so on. It is more ideal for the sand and gravel aggregate test in the construction industry. 15kg of aggregate can be charged in two times, and each time the machine is turned on for five minutes, it is convenient and simple to complete the grading work.



Main technical parameters of top impact vibrating screen machine (2)
Parameter item Unit SDB200 SDB300
Screen frame size mm Φ200 Φ300
Mesh size Target 20-200 20-200
Number of swings Times/min 221 221
Radius of gyration mm 12.5 25
Vibration times Times/min 147 147
Screen seat amplitude mm 8 8
Power W 370 370
Voltage V 380 380
Dimensions mm 500×350×800 800×400×880
Weight kg 130 180


Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.

Sand Top Impact Vibrating Screen Machine For Grinding Wheel 0


FAQ to save your precious time!


Q1: What's the standard length of your profiles and tube?

A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.


Q2: What's your MOQ?

A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.


Q3: what is your payment terms?

A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.


Q4: What's the lead time for small order and mass production?

A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.


Q5: What certification do you have?

A: We have ISO 9001:2008 certificate.
