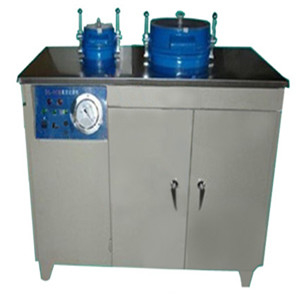

260mm 200mm Disc Laboratory Vacuum Filter Filtration Lab Equipment

I'm Online Chat Now

260mm 200mm Disc Laboratory Vacuum Filter Filtration Lab Equipment

260mm 200mm Disc Laboratory Vacuum Filter Filtration Lab Equipment
260mm 200mm Disc Laboratory Vacuum Filter Filtration Lab Equipment

Large Image :  260mm 200mm Disc Laboratory Vacuum Filter Filtration Lab Equipment

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: Disc Vacuum Filters
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

260mm 200mm Disc Laboratory Vacuum Filter Filtration Lab Equipment

Name: Disc Vacuum Filters Model: Disc Vacuum
Type: XTLZ- Φ260-Φ200 Purpose: Metallurgy, Geology
Application: Solid-liquid Separation When Testing Samples Weight: 160kg
Dimension: 650*540*1140mm Voltage: 380v
High Light:

260mm laboratory vacuum filter


200mm laboratory vacuum filter


380v Disc vacuum filtration lab equipment

Laboratory Disc Vacuum Filters


Main uses and characteristics:

Disc vacuum filters are used in scientific research and experimental units such as geology, metallurgy, coal, building materials, and mining to carry out mineral selectivity experiments, as dehydration after flotation, gravity separation, magnetic separation and other operations. Solid-liquid separation during sample. The machine is mainly composed of a vacuum pump, a water-separating air filter, a vacuum negative pressure tank and two filter disc groups or their drainage is automatically drained through an automatic control device to achieve the purpose of solid-liquid separation. This product is produced by the only enterprise designated by the original Ministry of Mines and Mines, and implements industry standards.



The main technical parameters
parameter item Unit DL-5C Φ240-Φ120 XTLZΦ260-Φ200
filter disc diameter mm Large plate Φ240, small plate Φ120 Large plate Φ260, small plate Φ240
vacuum pressure KPA 91.2 80
Slurry solid-liquid ratio   1:(4-7) 1:(4-7)
Feed particle size mm ≤0.5 ≤0.5
Filter sample dry weight g <500 <500
filter time min 1-10 1-10
Drain time s 30 30
filter cake moisture % <20 <20
Voltage v 380 380
power kw 1.6 1.5
Dimensions mm 650×540×1140 650×540×1140
total mass kg 160 200



Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
