Product Details:
|
| Name: | Multipurpose Drum Weak Magnetic Separator | Classification: | Magnetic Separator |
|---|---|---|---|
| Model: | Multipurpose Drum Weak | Type: | XCRS-φ400*240 |
| Purpose: | Mining Engineering Laboratory, | Material: | Magnetite |
| Weight: | 200kg | Dimension: | 1068*636*982 |
| High Light: | 400M Magnetic Separation Equipment,240MM Magnetic Separation Equipment,Multi purpose single drum magnetic separator |
||

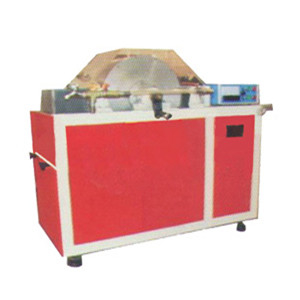

Multipurpose drum weak magnetic separator
Main uses and characteristics:
This machine is mainly used for mining engineering laboratories, intermediate test plants, selection plants and small concentrators to conduct small unit tests, continuous tests or production of magnetic ores such as magnetite and roasted magnetite. when used. It can also be used in machinery, electronics, etc. or other industrial sectors to recover powdery, fine needle-like or fine-grained ferromagnetic substances.
Parameter
| The main technical parameters | ||
| parameter item | Unit | XCRS-Φ400×240 |
| Sorting drum size | mm | Φ400×240 |
| Drum speed | r/min | 33 |
| The maximum magnetic field strength of the drum surface | A/m | 100000 |
| Oe | 1250 | |
| Exciting current | A | 0~5 |
| Maximum feed size | mm | 2.5 |
| throughput | kg/h | 20~50 |
| Excitation rated power | VA | 875 |
| Excitation coil rated temperature | ℃ | <60 |
| Motor Power | w | 370 |
| Dimensions (L×W×H) | mm | 1068×636×982 |
| Body net weight | kg | 200 |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
