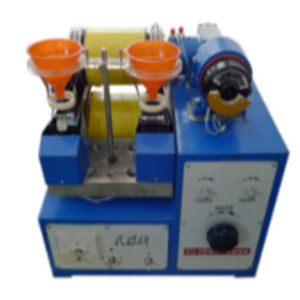

XCGII Roller Dry Magnetic Separator Permanent Magnetic Drum

XCGII Roller Dry Magnetic Separator Permanent Magnetic Drum
XCGII Roller Dry Magnetic Separator Permanent Magnetic Drum

Large Image :  XCGII Roller Dry Magnetic Separator Permanent Magnetic Drum

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: Roller Dry Magnetic Separator
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

XCGII Roller Dry Magnetic Separator Permanent Magnetic Drum

Name: Roller Dry Magnetic Separator Model: Roller Dry
Industry: Scientific Research And Experimental Unit And Field Survey And Census Geological Team Type: XCG- II
Function: Dry Sorting Purpose: Building Materials
Material: Fuel Material Weight: 75kg
Dimension: 620*414*500mm
High Light:

75kg Roller Dry Magnetic Separator


120MM Roller Dry Magnetic Separator


1400MT permanent magnetic drum separator

XCQG120 Roller Dry Magnetic Separator


Main uses and characteristics:

It is suitable for scientific research and experimental units such as geology, metallurgy, building materials, and fuel materials, as well as field survey and census geological teams. It is used for dry separation of weak magnetic minerals and strong magnetic minerals.



The main technical parameters
parameter item Unit XCG- II
Magnetic Roller Size mm Φ120×(30+30)double sided
Magnetic field strength MT 1400(14000GS)adjustable
Magnetic roller speed r/min 55
pole gap mm 4,6,8adjustable
throughput kg/h 5-25
Feeding particle size mm 0-5
power VA 500
Dimensions mm 620*414*500
total mass kg 75
