Product Details:
|
| Name: | Laboratory Screw Type Spiral Sand Washer Spiral Chute Classifier | Type: | Screw Type |
|---|---|---|---|
| Attributes: | Spiral Chute Classifier | Classification: | Laboratory Machine |
| Purpose: | Sand Washer | Output Circulating Load:: | 143-261 T/24h |
| Feature: | Single | Key Selling Points: | Low Maintenance Cost |
| High Light: | 60 kg/h spiral sand washer,220V spiral chute classifier,ISO9001 Spiral Chute Classifier |
||

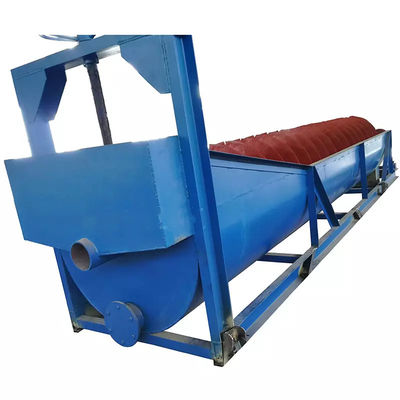

Laboratory Screw Type Spiral Sand Washer Spiral Chute Classifier
Uses and characteristics.
This machine is suitable for dehydration, desliming, dry and wet classification of non-metallic ores in geological, metallurgical and other units and concentrator laboratories. With the help of the principle of different solid particle sizes, different specific gravity and different settling speed in liquid, the fine mineral particles float in the water and overflow, and the coarse mineral particles sink into the tank bottom, that is, they are pushed up by the screw, the powder in the mill is filtered separately, and then the coarse material is screwed into the feed inlet. The lifting device is divided into electric and manual
Parameter
| Main technical parameters of FG type single spiral classifier | ||||
| Project | Unit | FG-100×1200 | FG-150×1200 | FG-200×1650 |
| Spiral size | mm | Φ100×1200 | Φ150×1200 | Φ200×1650 |
| Pitch | mm | 80 | 100 | 120 |
| Groove inclination angle | (°) | 10°~30° | ||
| Spiral speed | r/min | 18,23,30 | ||
| Processing capacity | kg/h | 30 | 60 | 80 |
| Motor Power | Kw | 0.4,0.25 | 0.6,0.4 | 1.0,0.6 |
| Voltage | V | 220,380 | ||
| Dimensions | mm | 1500×320×700 | 1574×320×740 | 1600×350×750 |
| Weight | kg | 66 | 76 | 82 |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
FAQ to save your precious time!
Q1: What's the standard length of your profiles and tube?
A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.
Q2: What's your MOQ?
A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.
Q3: what is your payment terms?
A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.
Q4: What's the lead time for small order and mass production?
A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.
Q5: What certification do you have?
A: We have ISO 9001:2008 certificate.
