Laboratory Gold Ore 1100×500 mm Gravity Separation Machine with Adjustable Stroke 9-17 mm and 0.55 kW Power Consumption

MOQ: 1
Price: negotiate
Standard Packaging: Cartons
Delivery Period: 1-3 working day
Payment Method: T/T,L/C
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Certification
ISO9001
Model Number
Shaking Table
Name:
Laboratory Gold Ore Separating Machine Mining
Industry:
Laboratory Mine Geography
Classification:
Ore Separating Machine
Purpose:
Fine-grained Rare Metals
Material:
Gold Ore
Applicable Industries:
Construction Works , Mining
Type:
Gravity Separator
Bed Size Mm:
1100×500
Highlight:

1100×500 gravity separation machine

,

gold ore gravity separation machine

,

1100×500 gravity sorter

Product Description

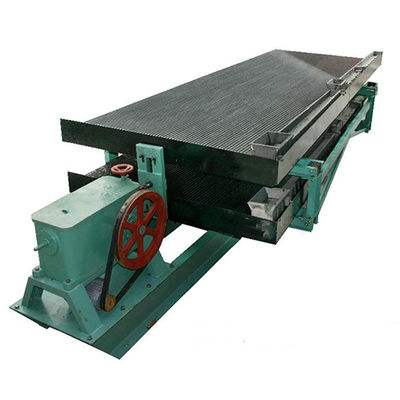

Laboratory Gold Ore 1100×500 Gravity Separation Machine Mining
Product Overview

The laboratory shaking table is designed for ore selectivity research, flotation-free beneficiation experiments, and gravity beneficiation in small mines. The 1100×500 mm model is sized for laboratory benches and pilot rooms, separating fine-grained gold ore and other heavy minerals from gangue through differential bed movement and cross-flow wash water.

Main Features
  • Laboratory-Sized Bed: 1100×500 mm table bed fits bench-scale test work and small mine production
  • Adjustable Stroke: Stroke length of 9-17 mm and stroke rate of 280-460 r/min for optimal particle separation
  • Bed Slope Adjustment: Inclination angle from 0 to 10 degrees for different separation tasks
  • Wide Feed Range: Handles slime feeds below 0.074 mm and ore sand feeds below 2 mm
  • Modest Utility Demand: Consumes only 2-10 L/min of water and 0.55 kW of power
Working Principle

Ore pulp is fed onto the inclined table bed with wash water. The reciprocating motion transports particles along riffles while water film stratifies the material: heavy mineral grains settle into riffles and move to the concentrate end, while lighter gangue washes across to tailings. Throughput reaches 20-60 kg for slime feeds and 40-100 kg for ore sand feeds per working cycle.

Technical Parameters
Parameter Value Unit
Bed size 1100×500 mm
Stroke 9~17 mm
Times of stroke 280~460 r/min
Inclination angle of bed surface 0~10 °
Feed - Slime -0.074 mm
Feed - Ore sand -2 mm
Feed density 10~30 %
Throughput - Slime 20~60 kg
Throughput - Ore sand 40~100 kg
Water consumption 2~10 L/min
Power 0.55 kW
Outline size 1730×500×800 mm
Weight 145 kg
Frequently Asked Questions
Which materials can be separated on this shaking table?
Fine-grained gold ore and other heavy minerals, rare metals, and materials with clear density differences can be separated by gravity concentration.
What feed sizes are suitable?
Slime feeds should be below 0.074 mm and ore sand feeds below 2 mm, at a feed density of 10-30 percent.
How are the stroke parameters adjusted?
The stroke is adjustable between 9 and 17 mm, and the stroke rate between 280 and 460 r/min, to suit different materials.
What are the utility requirements?
Water consumption is 2-10 L/min and installed power is 0.55 kW.
Company Profile

Y&X Beijing Technology Co., Ltd., established in 2014 and located in Beijing, China, provides comprehensive professional solutions for overseas mining companies. The company's laboratory gravity separation and mineral processing equipment is applied in mining, construction and laboratory research in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia, Tanzania, Nigeria and other countries and regions.

Laboratory Gold Ore Gravity Separation Machine
