Product Details:
|
| Name: | Shaker | Type: | LY Series |
|---|---|---|---|
| Purpose: | Laboratory Mine | Material: | Fine Rare Metals |
| Feature: | High Quality Concentrate | Function: | Use Together， Use Alone |
| Weight: | 150kg | Dimension: | 1530X500X800mm |
| High Light: | 150kg mini gold shaker table,1530mm mini gold shaker table,800mm metal laboratory furniture |
||

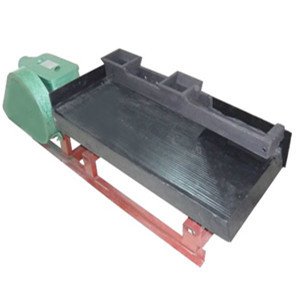

LY Shaker for Laboratory Mine Study
Main uses and features:
LY type shaker is one of the commonly used equipments for gravity beneficiation in laboratories for ore selectivity research, experiments and small beneficiation plants. It is suitable for the separation of fine-grained and fine-grained rare metals, ferrous metals, non-ferrous metals, precious metals and other ores and coals. It can not only be used as an independent beneficiation operation, but also can be used in conjunction with jig, spiral concentrator, centrifugal concentrator, etc. or other mining methods. This product is produced by the only enterprise designated by the original Ministry of Mines and Mines, and implements industry standards. The equipment is selected according to the specific gravity difference of the selected minerals and the stratification performance in the transverse water flow of the reciprocating asymmetrical and inclined bed surface. It has the characteristics of obvious zonation of minerals with different specific gravity on the bed surface, high quality of concentrate, and convenient operation and adjustment. The structure of the shaking table is divided into ore sand and ore mud, and the material is glass fiber reinforced plastic or aluminum alloy.
Parameter
| Main tecanical parameters of LY type shaker | |||||
| Parameter item | Unit | LY2100×1050 | LY1100×500 | LY1000×450 | |
| Bed size | mm | 2100×1050×850 | 1100×500×430 | 1000×450×400 | |
| Stroke | mm | 12~28 | 8~18 | 9~17 | |
| Flush | /min | 250~450 | 300~450 | 280~460 | |
| Laeral slop adjustment angle | (0) | 0~8 | 0~10 | 0~10 | |
| Feeding partical size | ore sand | mm | ≤2 | ≤2 | ≤2 |
| Slime | mm | ≤0.174 | ≤0.174 | ≤0.174 | |
| Feeding concentration | % | 10~30 | 10~30 | 10~30 | |
| Processing capacity | ore sand | t/h | 0.4~0.8 | 0.1~0.2 | 0.01~0.15 |
| Slime | t/h | 0.3~0.5 | 0.05~0.15 | 0.01~0.1 | |
| Water Consumption | t/h | 0.2~1 | 0.1~0.5 | 0.1~0.5 | |
| Motor Power | kw | 1.1 | 0.55 | 0.55 | |
| Dimensions | mm | 3040×1050×1020 | 1530×500×800 | 1430×450×800 | |
| Weight | kg | 450 | 150 | 130 | |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
