Laboratory Shaking Table Gravity Separation Machine For Metallurgy

I'm Online Chat Now

Laboratory Shaking Table Gravity Separation Machine For Metallurgy

Laboratory Shaking Table Gravity Separation Machine For Metallurgy
Laboratory Shaking Table Gravity Separation Machine For Metallurgy

Large Image :  Laboratory Shaking Table Gravity Separation Machine For Metallurgy

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: Shaking Table
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

Laboratory Shaking Table Gravity Separation Machine For Metallurgy

Name: Shaking Table Industry: Mine
Classification: LYN LYS Purpose: Fine And Fine-grained Rare Metals
Material: Ferrous And Non-ferrous Metals Bed Size: 1100×500mm
Stroke: 9~17mm Times Of Stroke: 280~460r/min
High Light:

Metallurgy Gravity Separation Machine


460r/min Gravity Separation Machine


17mm laboratory shaking table

Laboratory Shaking Table for Metallurgy

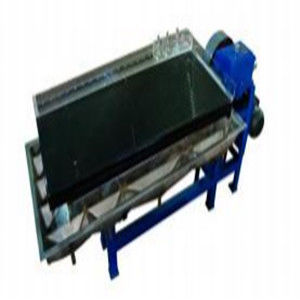

Shaking table is a common equipment used in laboratories for ore selectivity research, experiments and gravity beneficiation in small mines. It is divided into slime type (LYN) and ore sand type (LYS). It is suitable for the separation of fine-grained and fine-grained rare metals, ferrous metals, non-ferrous metals, precious metals and other ores and coals.


Technical Parameters:

 Item Value  Unit
 Bed size 1100×500 mm
 Stroke 9~17 mm
Times of stroke 280~460 r/min


Inclinations angle of bed










 Feed Slime -0.074 mm
 Ore sand -2
 Feed density 10~30 %
Th roughput  Slime 20~60 kg
矿砂 Ore sand 40~100
 Water consumption 2~10 L/min
 Power 0.55 kw
 Outline size 1730×500×800 mm
Weight 145 kg


Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
Laboratory Shaking Table Gravity Separation Machine For Metallurgy 0

1: What's the standard length of your profiles and tube?

A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.


Q2: What's your MOQ?

A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.


Q3: what is your payment terms?

A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.


Q4: What's the lead time for small order and mass production?

A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.


Q5: What certification do you have?

A: We have ISO 9001:2008 certificate.
