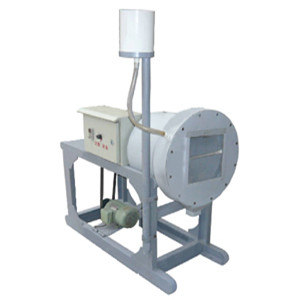

Laboratory LX Gravity Separation Machine Centrifugal Concentrator

Laboratory LX Gravity Separation Machine Centrifugal Concentrator
Laboratory LX Gravity Separation Machine Centrifugal Concentrator

Large Image :  Laboratory LX Gravity Separation Machine Centrifugal Concentrator

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: Laboratory centrifugal concentrator
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

Laboratory LX Gravity Separation Machine Centrifugal Concentrator

Name: Laboratory Centrifugal Concentrator Type: LX400X300
Model: Centrifugal Mine: Tungsten Tin, Tantalum Niobium
Structure: Drum, Chassis Weight: 0.12t
Dry Ore Processing Capacity: 0.01-0.02t Origin: China
High Light:

300MM Gravity Separation Machine


400MM Gravity Separation Machine


0.12t Laboratory centrifugal concentrator

Laboratory LX400X300 centrifugal concentrator


Main uses and features:
BLL type glass centrifugal concentrator is suitable for fine mud of -200 mesh metal mines, tungsten tin, tantalum niobium, rare earth ore, copper, lead and zinc ore.


Structure :
The main machine includes a drum, a chassis, a feeder, a feeder nozzle (two upper and lower), a punching nozzle, an ore receiving trough, a ore distributor, etc.


Working principle :
The centrifugal concentrator works intermittently, but the ore breaking, rushing and sorting of the concentrate are carried out automatically by the command and execution agency. The command body is a time relay, which can pass people or cut off the current within the specified time. The executive mechanism includes the ore breaking pipe in the ore hopper, the three-way valve and the membrane valve for controlling the flushing water, and the ore distributor for the reversing discharge of the concentrated tailings. They are driven by electromagnets respectively. When the specified separation time is reached, the broken ore pipe swings to the side of the return pipe, and the ore pulp no longer enters the drum. At the same time, the three-way valve cuts off the low-pressure water circuit, and the closed water pressure on the upper part of the membrane valve is removed, so the high-pressure water enters the drum through the membrane valve. At this time, the lower ore distributor also swings to the side of the concentrate pipe, and the washed concentrate is introduced into the concentrate pipe. After the flushing is completed, the actuators return to their original positions and continue to sort the ore.



The main technical parameters
parameter item Unit LX400×300
Drum diameter mm Φ400
Drum speed r/min 400~1000
Feeding particle size mm -0.074(-200 account90%)
Feeding concentration % 15~25
Dry ore processing capacity t/h 0.01-0.02
Drum motor power kw 1.5-2.2
weight t 0.12


Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.

Laboratory LX Gravity Separation Machine Centrifugal Concentrator 0


FAQ to save your precious time!


Q1: What's the standard length of your profiles and tube?

A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.


Q2: What's your MOQ?

A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.


Q3: what is your payment terms?

A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.


Q4: What's the lead time for small order and mass production?

A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.


Q5: What certification do you have?

A: We have ISO 9001:2008 certificate.
