Product Details:
|
| Name: | Hydrocyclone | Type: | FX Series |
|---|---|---|---|
| Machine: | Laboratory Mahine | Purpose: | Replacing Machine Inspection And Grading Machine |
| Feature: | Grain Size For Grading Operations | Weight: | 57kg |
| Dimension: | 320mm | Processing Capacity: | 2.4-1.5 |
| High Light: | 57kg Gravity Separation Machine,320mm Gravity Separation Machine,125mm hydrocyclone sand separator |
||

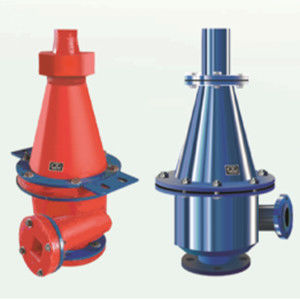

FX series hydrocyclone
Main uses and characteristics:
Hydrocyclones are commonly used in metal concentrators in the second stage grinding or coarse concentrate regrinding process and closed-circuit use of mechanical classifiers to replace mechanical inspection classifiers and classify according to particle size.
Parameter
| Main technical parameters of FX series hydrocyclone | ||||||
| Item/Model | FX-125 | FX-150 | FX-250 | FX-300 | FX-350 | |
| Overflow particle size (μm) | 15-250 | 25-250 | 25-250 | 25-250 | 25-250 | |
| Processing capacity (m²/h) | 2.4-1.5 | 4.8-54 | 6.5-61.2 | 24-60 | 24-90 | |
| Allowable overflow pressure(kg/cm²) | 0.3-3 | 0.3-3 | 0.3-3 | 0.3-3 | 0.3-3 | |
| Cyclone Structural Parameters | Diameter(mm) | Φ125 | Φ150 | Φ250 | Φ300 | Φ350 |
| Cone Angle(mm) | 20 | 20 | 20 | 20 | 20 | |
| Cylinder height (degrees) | 110 | 200 | 170 | 235 | 180 | |
| Length of overflow pipe(mm) | 107 | 130 | 163 | 210 | 215 | |
| Feeding port area (mm) | 25×10 | 40×10 | 50×20 | 75×25 | 80×35 | |
| Sand discharge pipe diameter (mm) | 15-30 | 15 | 35 | 50 | 25 | |
| Dimensions (mm) | Length(mm) | 320 | 594 | 540 | 575 | 575 |
| Width(mm) | 260 | 380 | 475 | 550 | 690 | |
| Height(mm) | 648 | 899 | 1172 | 1444 | 1510 | |
| weight (kg) | 57 | 128 | 205 | 240 | 280 | |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
FAQ to save your precious time!
Q1: What's the standard length of your profiles and tube?
A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.
Q2: What's your MOQ?
A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.
Q3: what is your payment terms?
A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.
Q4: What's the lead time for small order and mass production?
A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.
Q5: What certification do you have?
A: We have ISO 9001:2008 certificate.
