Laboratory XCT Gravity Separation Machine Diaphragm Jig

I'm Online Chat Now

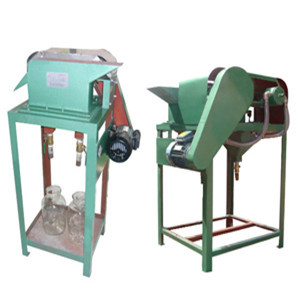

Laboratory XCT Gravity Separation Machine Diaphragm Jig

Laboratory XCT Gravity Separation Machine Diaphragm Jig
Laboratory XCT Gravity Separation Machine Diaphragm Jig

Large Image :  Laboratory XCT Gravity Separation Machine Diaphragm Jig

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: Diaphragm Jig
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

Laboratory XCT Gravity Separation Machine Diaphragm Jig

Name: Diaphragm Jig Type: XCT Type
Model: Diaphragm Application: Laboratory Chemical
Advantage: High Performance Attributes: Jig
Jig Room Length: 150mm Jig Room Width: 100mm
High Light:

150mm Gravity Separation Machine


100mm Gravity Separation Machine


laboratory chemical use Diaphragm Jig

High performance XCT Diaphragm Jig for laboratory

Main uses and features:
It is suitable for XCT type diaphragm jig for gravity beneficiation. Gravity beneficiation is based on the different specific gravity of ore and the different sedimentation speed in the medium. The difference in mineral weight is used to complete the stratified separation of ore particle mixture. This product is produced by the only enterprise designated by the original Ministry of Mines and Mines, and implements industry standards. Diaphragm jig is suitable for the experimental research of sorting ferrous and non-ferrous metals, chemistry, construction, etc.


Main technical parameters of XCT type diaphragm Jig
Parameter item Unit XCT 100×150 XCT 200×300
Jig room length mm 150 300
Jig room width mm 100 200
Number of jigging rooms   2 2
Jig room area 0.03 0.06
Eccentric Max Stroke mm ≤20 ≤32
Feeding particle size mm ≤3 ≤6
Strokes per minute l/min 420 346
Processing power kg/h 20-70 ≤700
Maximum amount of sieved water L/S 0.117 0.117
Maximum amount of water to sieve L/S 0.1 0.1
Motor Power kw 0.4 0.75
Dimensions mm 752×520×1312 1110×520×1312
Weight kg 150 175

Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
Laboratory XCT Gravity Separation Machine Diaphragm Jig 0

FAQ to save your precious time!


Q1: What's the standard length of your profiles and tube?

A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.


Q2: What's your MOQ?

A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.


Q3: what is your payment terms?

A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.


Q4: What's the lead time for small order and mass production?

A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.


Q5: What certification do you have?

A: We have ISO 9001:2008 certificate.
