Product Details:
|
| Name: | Mining Equipment Laboratory Gold Separation Machine | Keyword: | Laboratory Gold Separation Machine |
|---|---|---|---|
| Classification: | Laboratory Equipment | Purpose: | Chemistry And Building Industries |
| Production Capacity: | 98 | Core Components: | Bearing, Motor, PLC, Other, Gearbox |
| Stroke Mm: | 9~17 | Times Of Stroke R/min: | 280~460 |
| High Light: | 98t/h gravity separation equipment,mining gold gravity separation equipment,98t/h gravity separation machine |
||

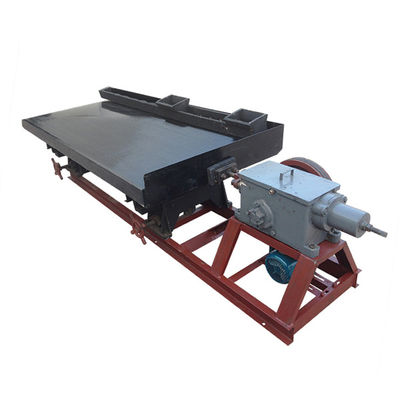

Mining Equipment Laboratory Gold Separation Machine
Introduction
Shaking table is a common equipment used in laboratories for ore selectivity research, experiments and gravity beneficiation in small mines. It is divided into slime type (LYN) and ore sand type (LYS). It is suitable for the separation of fine-grained and fine-grained rare metals, ferrous metals, non-ferrous metals, precious metals and other ores and coals.
Working principles
Shake table is on the lean table board with raffles. The ore material is fed in by the feeding chute upper table board; meanwhile,
the water is fed by water feeder transversely. Under the impact of vibrating wave, the materials go on vertical and horizontal
Technical Parameters:
| Item | Value | Unit | |
| Bed size | 1100×500 | mm | |
| Stroke | 9~17 | mm | |
| Times of stroke | 280~460 | r/min | |
|
Inclinations angle of bed surface |
0~10 |
°C |
|
| Feed | Slime | -0.074 | mm |
| Ore sand | -2 | ||
| Feed density | 10~30 | % | |
| Th roughput | Slime | 20~60 | kg |
| 矿砂 Ore sand | 40~100 | ||
| Water consumption | 2~10 | L/min | |
| Power | 0.55 | kw | |
| Outline size | 1730×500×800 | mm | |
| Weight | 145 | kg | |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
FAQ
1: What's the standard length of your profiles and tube?
A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.
Q2: What's your MOQ?
A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.
Q3: what is your payment terms?
A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.
Q4: What's the lead time for small order and mass production?
A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.
Q5: What certification do you have?
A: We have ISO 9001:2008 certificate.
