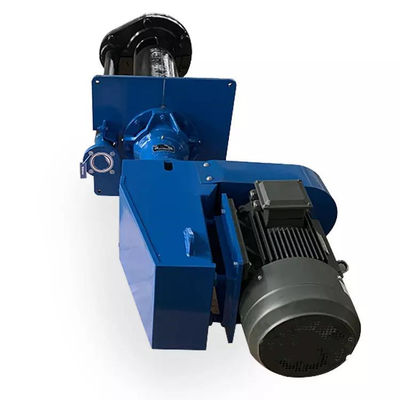

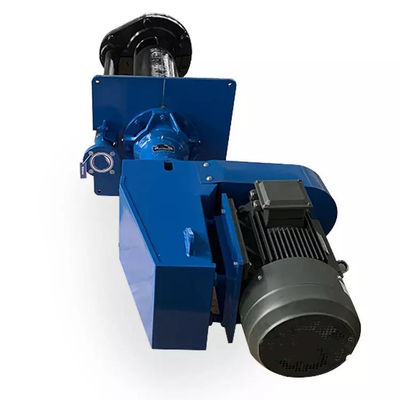

Large Image :  Mining 2xz Screw Vacuum Vertical Chemical Pump For Laboratory

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: screw vacuum pump
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

Mining 2xz Screw Vacuum Vertical Chemical Pump For Laboratory

Name: Mining 2XZ Screw Vacuum Pump For Laboratory Model: Screw
Type: 2XZ Usage: Use Alone
Advantage: No Oil Return When The Pump Is Stopped Avoid: Explosive
Purpose: Industrial Sector Weight: 15kg
High Light:

screw vacuum vertical chemical pump


laboratory mining vertical chemical pump


laboratory mining centrifugal pump vertical type

Mining 2XZ Screw Vacuum Pump For Laboratory


Main uses and features:

2XZ rotary vane vacuum pump is a two-stage high-speed direct-connected rotary vane vacuum pump. This pump is a basic equipment used to extract gas from sealed containers to obtain vacuum. It can be used alone or as a backing pump and pre-pumping pump for various high vacuum systems. This product is produced by the only enterprise designated by the original Ministry of Mines and Mines, and implements industry standards. This series of pumps has the advantages of low noise, no oil return when the pump is stopped, easy to start, etc. The pump is equipped with a gas ballast valve, which can remove a small amount of condensable steam. This pump can not pump out the gas containing high oxygen, corrosive, explosive or toxic, and particle dust, and can not be used as a compression pump or air pump. This series of pumps is suitable for use in industrial sectors, scientific research and institutions of higher learning, and is an indispensable basic equipment for various vacuum operation systems.



The main technical parameters
parameter item Unit 2ZX-0.25 2ZX-0.5 2ZX-1 2ZX-2 2ZX-4(4C) 2ZX-8C
pumping rate L/S 0.25 0.5 1 2 4 8
ultimate pressure Pa 6×10⁻¹ 6×10⁻²
Rotating speed r/min 1400
Voltage V 220 220/380 380
Motor Power kw 0.12 0.18 0.25 0.37 0.55 1.1
Inlet and Outlet Diameter mm 10 16 25 40
oil consumption L 0.4 0.5 0.55 0.65 0.8 1.8
Pump oil temperature rise 40 45 65
Dimensions long mm 400 445 467 488 528 575
width mm 125 130 145 172
high mm 240 254 280 350
quality kg 15 18 19 27 29 50


Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
