Product Details:
|
| Name: | Vertical Sand Pump | Attributes: | Pump |
|---|---|---|---|
| Model: | Vertical | Material: | Sand |
| Purpose: | Laboratory Conveying Slurry And Discharging Tailings | Wieght: | 65kg |
| Power: | 0.75kw | Voltage: | 380v |
| High Light: | 0.75kw vertical chemical pump,iso 9001 vertical chemical pump,conveying slurry vertical sand pump |
||

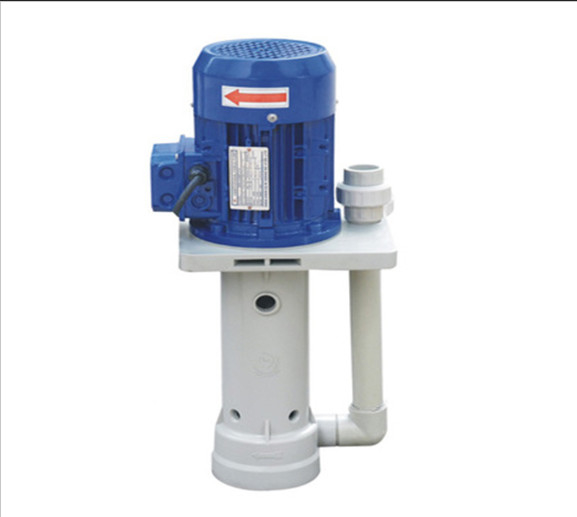

Laboratory Sand Vertical Chemical Pump With ISO9001
Main uses and characteristics:
XBSL type vertical sand pump is mainly used for transporting ore slurry and discharging tailings in laboratories, and can also be used for transporting medium in coal preparation plants, transporting high-temperature easy-to-crystallize ore slurry in aluminum plants, and transporting materials in cement plants. Material. This product is produced by the only enterprise designated by the former Ministry of Mine and implements industry standards. XBSL type vertical sand pump consists of pump body, bearing seat and the lower end of the vertical shaft connected with the impeller to rotate in the rolling bearing. The two ends of the bearing seat are pressed tightly by the gland and the rolling bearing, and the lubricating oil of the bearing must be sealed without leakage. The pump body is equipped with a motor bracket and a motor, and the impeller is driven by a V-belt to rotate in the pump chamber, and the pressure of the impeller is used to squeeze the pulp. go out. In order to prevent ore from seeping into the bearing, a centrifugal wheel is installed on the main shaft.
Parameter
| The main technical parameters | |||||
| parameter item | Unit | XBSL13(1/2”) | XBSL19(3/4”) | XBSL25(1”) | XBSL38(3/2”) |
| Discharge port diameter | mm | Φ13 | Φ19 | Φ25 | Φ38 |
| head | m | 5 | 6 | 9 | 12 |
| flow | L/min | 20-30 | 55 | 110 | 250 |
| pulp concentration | % | 30 | 30 | 30 | 30 |
| power | kw | 0.75 | 1.1 | 1.5 | 3 |
| Voltage | v | 380 | 380 | 380 | 380 |
| Dimensions | mm | 486×280×465 | 420×351×553 | 682×500×648 | 690×485×685 |
| total mass | kg | 65 | 110 | 157 | 200 |
Company profile
Y&X Beijing Technology Co., Ltd. was founded. Ltd., was established in 2014 and located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. From the beginning, the mission has been to expand overseas markets and provide comprehensive professionalism for overseas mining companies.
The company specializes in researching and supplying mineral processing reagents and equipment, including mineral processing equipment and laboratory mineral processing equipment; Non-metallic mines, research departments in industries such as dressing plants and mineral processing plants in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
