Metal Oxides Laboratory Cone Crusher Isolation Low Consumption

I'm Online Chat Now

Metal Oxides Laboratory Cone Crusher Isolation Low Consumption

Metal Oxides Laboratory Cone Crusher Isolation Low Consumption
Metal Oxides Laboratory Cone Crusher Isolation Low Consumption

Large Image :  Metal Oxides Laboratory Cone Crusher Isolation Low Consumption

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: jaw crusher
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

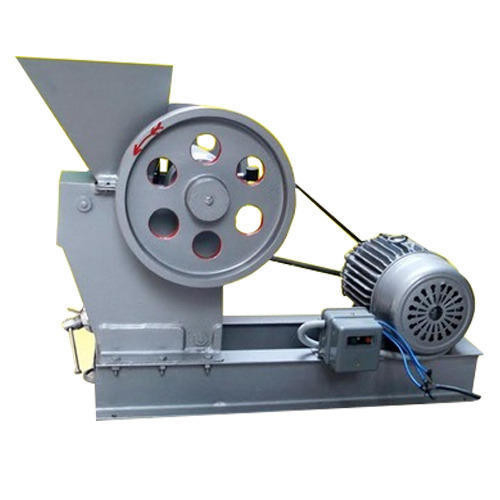

Metal Oxides Laboratory Cone Crusher Isolation Low Consumption

Name: Small MPE Sealed Jaw Crusher Machine For Laboratory Metallurgy Model: Sealed Jaw Crusher
Application: Laboratory Processing Energy: Low Consumption
Special Industries: Metal Oxides Feature: Isolation Of Materials From Air
Jaw Plate: Flat High-hardness
High Light:

metal oxides laboratory cone crusher


isolation laboratory cone crusher


low consumption laboratory cone crusher

Laboratory Cone Crusher Isolation Low Consumption


Main uses and features:

This machine is a four-bar linkage complex swing type ultra-fine crushing equipment specially designed for special industries such as rare earth NdFeB magnetic materials, ceramic pigments, and metal oxides. The machine adopts negative suspension, zero support, and adopts a number of new technologies such as curved ultra-fine deep crushing cavity and flat high-hardness jaw plate.


Working principle
The motor drives the fixed roller and movable roller to work via reducer, V-belts or coupling. Materials are put into the space between the two rollers via the feed entrance. As the two rollers inward turning, the input materials are crushed, pressed, ground, and at last come out from the base of the machine.


1.Compact structure, low noise and efficient;
2. Easy to install and only need simple foundation;
3. Can adjust the pressure and size easily.
4. Self-protection, the parts can not be damaged when hard materials such as the metals goes into the crushing cavity;

Name Small MPE Sealed Jaw Crusher Machine For Laboratory Metallurgy
Model Sealed Jaw Crusher
Purpose Laboratory Metallurgy



Main technical parameters of MPE type sealed jaw crusher
Parameter item Unit MPE-100×125 MPE-100×250
Inlet size mm 100×125 100×250
Maximum feed size mm 80 80
Discharge port adjustment range mm 1-15 1-8.
Maximum productivity kg/h 45~600 300~1000
Electric motor kw 3 4
Dimensions mm 770×770×1760 900×900×1200
Body net weight kg 450 700
Remark Can be filled with mert gas protection to prevent material oxidation


Company profile

Y&X Beijing Technology Co., Ltd. was founded in 2014 and is located in Beijing. Capital of China Our company has become a professional enterprise that integrates scientific research, design, new product development, production and production with strong technical strength. As a family group, our mission from the beginning was to expand our overseas market and provide one-stop specialists for overseas mining companies.


The company specializes in researching and supplying reagents and mineral processing equipment. Includes Mineral Processing Equipment and Experimental Mineral Processing Equipment. Products are widely used in metallurgy, geology, petroleum, coal, chemicals and building materials. Environmental protection Non-ferrous and non-ferrous mines Industry research sectors such as skin finishing plants Universities and university mineral processing laboratories.


Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
