Environmental Protection Disc Pulverizer Machine for Mining Laboratory Sample Grinding
  • name
  • name
  • name

Environmental Protection Disc Pulverizer Machine for Mining Laboratory Sample Grinding

MOQ: 1
Price: Negotiate
Standard Packaging: Cartons
Delivery Period: 1-3 working day
Payment Method: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Model Number
Φ200 Disc Pulverizer
Product Name:
Disc Pulverizer
Model:
Φ200
Application:
Mineral Sample Preparation
Feed Size:
≤8 Mm
Output Size:
80-200 Mesh
Capacity:
30 Kg/h
Motor Power:
3 KW
Voltage:
380V
Grinding Material:
High Manganese Steel
Highlight:

Environmental Protection Disc Pulverizer Machine

,

Mining Laboratory Sample Grinder

,

Laboratory Rock Crusher with Warranty

Product Description
Environmental Protection Disc Pulverizer Machine for Mining Laboratory Sample Grinding
The Φ200 Environmental Protection Disc Pulverizer is a high-performance laboratory grinding equipment designed for mineral sample preparation. With a compact structure, easy operation and reliable performance, this disc pulverizer adopts a closed grinding system to reduce dust pollution and improve working conditions.
The grinding chamber is designed for efficient crushing and fine grinding, providing uniform particle size for laboratory analysis. It is widely used for preparing samples in mining, geology, metallurgy, chemical industry, building materials, cement plants, universities and research institutes.
The equipment is suitable for grinding various mineral samples before flotation tests, chemical analysis, XRF analysis and other laboratory testing processes.

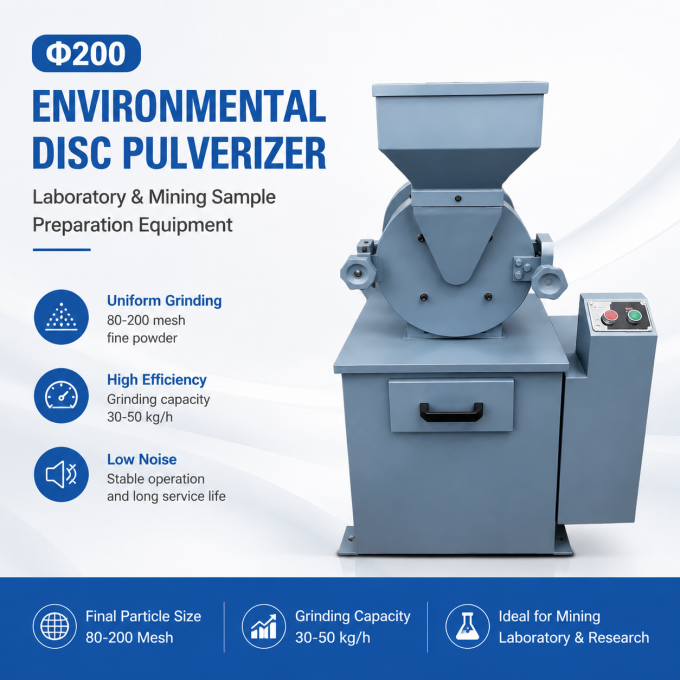

Φ200 Environmental Protection Disc Pulverizer Machine
Main Advantages
  • High grinding efficiency and stable performance
  • Low noise and reduced dust generation
  • Easy feeding and convenient operation
  • Uniform particle size output
  • Compact design suitable for laboratory use
  • Suitable for various mineral sample preparation applications
Technical Specifications
Parameter Model Φ200 Model Φ250
Disc Diameter Φ200 mm Φ250 mm
Feed Size ≤8 mm ≤8 mm
Output Size 80-200 mesh 80-200 mesh
Grinding Material High manganese steel High manganese steel
Vertical Shaft Speed 466 rpm 466 rpm
Grinding Capacity 30 kg/h 50 kg/h
Motor Power 3 kW 3 kW
Power Supply Three phase, 380V, 50Hz Three phase, 380V, 50Hz
Equipment Weight 200 kg 230 kg
Applications
Mining Industry
  • Gold ore sample preparation
  • Copper ore testing
  • Iron ore analysis
  • Lead-zinc ore laboratory testing
Laboratory Applications
  • Geological laboratories
  • Mineral testing centers
  • Metallurgical laboratories
  • Universities and research institutes
Industrial Applications
  • Cement industry
  • Building materials industry
  • Chemical industry
Disc Pulverizer in laboratory setting
Safety Operation Instructions
To ensure safe operation and extend the service life of the equipment, please follow the safety instructions below.
Qualified Operators
Only trained personnel should operate the machine. Operators must carefully read and understand the instruction manual before use.
Never Service While Running
Do not adjust, clean, lubricate, or repair the machine while it is operating. Always switch off the power supply and wait until all moving parts have completely stopped before performing any maintenance.
Proper Electrical Protection
The machine must be properly grounded. Electrical cables should be installed in insulated conduits. It is recommended to install a residual current device (RCD) or leakage protection device according to the operating environment.
Overload Protection
To prevent motor overheating or equipment damage caused by overloading, an overcurrent protection device should be installed based on the operating frequency and the characteristics of the processed materials.
Inspect Safety Devices
Before each operation, check that all electrical protection devices, safety guards, and protective covers are in good condition and functioning properly. Any potential hazards must be eliminated before starting the machine.
Packing
Standard export packaging for disc pulverizer
  • Standard Export Plywood Case
  • Shockproof Foam Protection
  • Suitable for Ocean Shipping
  • Suitable for Air Freight
  • Suitable for Land Transportation
Why Choose This Disc Pulverizer?
Efficient Sample Preparation
Quickly grinds mineral samples into fine powder suitable for laboratory analysis.
Reliable Grinding Performance
High manganese steel grinding components provide good wear resistance and long service life.
Laboratory-Friendly Design
Compact structure, simple operation and low maintenance requirements.
Wide Application Range
Suitable for different mineral samples including metallic ores and non-metallic materials.
Frequently Asked Questions
What is the maximum feeding size of this disc pulverizer?
The maximum feeding size is ≤8 mm.
What particle size can the machine produce?
The output particle size is 80-200 mesh.
What industries use this equipment?
It is widely used in mining laboratories, geology, metallurgy, cement and research institutes.
What is the capacity of Φ200 disc pulverizer?
The grinding capacity is about 30 kg/h.
