Laboratory Sample Preparation Crusher for Mineral Testing
  • name
  • name

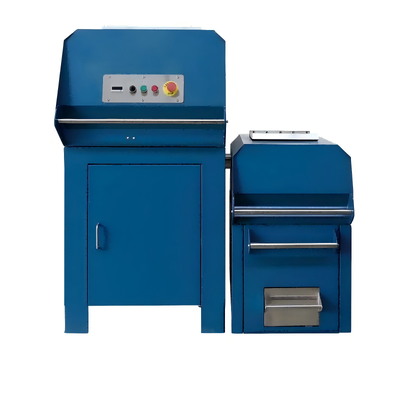

Laboratory Sample Preparation Crusher for Mineral Testing

MOQ: 1 Set
Price: Negotiate
Standard Packaging: Standard export packing, or customized packing as your request
Delivery Period: 15-30 working days
Payment Method: L/C,T/T
Supply Capacity: Standard and custom production available
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Certification
ISO9001
Model Number
Jaw Crusher and Rotary Sample Divider
Product Type:
Laboratory Sample Preparation Crusher
Application:
Laboratory Sample Preparation
Application Materials:
Minerals, Ores And Other Suitable Materials
Output Size:
1–15 Mm
Crushing Motor Power:
3 KW
Voltage:
380 V / 50 Hz, Customizable
Highlight:

Laboratory sample preparation crusher

,

Mineral testing rock crusher

,

Laboratory rock crusher for mineral testing

Product Description
Laboratory Sample Preparation Crusher for Mineral Testing

Preparing representative mineral samples is an essential step in laboratory testing and ore analysis. The Y&X laboratory sample preparation crusher is designed to reduce suitable mineral and ore samples before subsequent testing and analysis.

With a maximum feed size of 70 mm and a nominal output size of 1–15 mm, the equipment supports sample preparation workflows in mining laboratories, metallurgical testing facilities and research environments.

The integrated crushing and rotary sample division process helps simplify sample handling, while selectable splitting ratios allow the collected sample proportion to be adjusted to different testing requirements.

Key Features and Benefits
  • Suitable for Laboratory Samples: Accepts suitable feed materials up to 70 mm for sample preparation before analysis.
  • Controlled Particle Size: A nominal output size of 1–15 mm supports different downstream testing requirements.
  • Adjustable Sample Splitting: Selectable ratios from 5% to 50% accommodate different sample collection needs.
  • Integrated Sample Processing: Combines crushing and rotary sample division in one workflow to reduce intermediate material transfers.
  • Practical Laboratory Operation: Designed for routine mineral sample preparation in testing and research environments.
  • Convenient Equipment Integration: Combines two sample preparation functions in one unit, simplifying equipment layout.
Applications
  • Mineral and ore sample preparation
  • Mining and metallurgical laboratories
  • Geological sample testing
  • Laboratory quality control
  • Sample preparation before chemical and instrumental analysis
Technical Specifications
Parameter Specification
Voltage / Frequency 380 V / 50 Hz
Jaw Crusher Motor Power 5.5 kW
Rotary Sample Divider Motor Power 0.25 kW
Feed Chute Dimensions 75 × 265 mm
Maximum Feed Size ≤70 mm
Output Size 1–15 mm
Adjustable Split Ratios 5%, 10%, 15%, 20%, 25%, 30%, 35%, 40%, 45%, 50%
One-Time Crushing Volume 5.5 L
Overall Dimensions 1177 × 1215 × 1298 mm
How to Select the Right Configuration

When selecting sample preparation equipment, consider the sample material, maximum feed size, required output size, batch volume and target sample proportion. These factors help determine whether the equipment is suitable for the intended laboratory workflow.

For samples with different material characteristics, the appropriate operating conditions and cleaning procedures should be selected to support reliable sample preparation.

Request a Quote

Looking for laboratory sample preparation equipment for mineral or ore testing? Contact Y&X with your sample material, maximum feed size, required output size and target sample proportion.

Our team can help assess the suitability of the equipment for your application.
