Product Details:
|
| Name: | Conical Ball Mill | Model: | XMQ |
|---|---|---|---|
| Purpose: | Laboratory Equipment | Function: | Laboratory Grinding |
| Type: | Conical Type | Usage: | Wet Grinding Of Fine |
| Material: | Artificial Heavy Sand | Cylinder Volume: | 1L |
| High Light: | 1L Laboratory Grinding Mill,200g Laboratory Grinding Mill,112r/min conical ball mill |
||

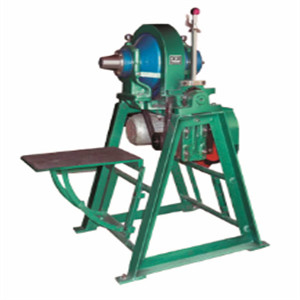

XMQ Conical Ball Mill for laboratory grinding
Main uses and characteristics
XMQ series conical ball mill is a laboratory grinding equipment for laboratory wet grinding of fine ores (its 150 × 50 conical ball mill can also be used for dry grinding), suitable for metallurgy, building materials , chemical industry, light industry, coal, hydropower, artificial heavy sand, ore technical processing and other grinding materials in agricultural and geological experiment work
Parameter
| Main technical parameters of XMQ conical ball mill | |||||
| Parameter item | Unit | XMQ 150×50 | XMQ 150×100 | XMQ 240×90 | XMQ 350×160 |
| Conical barrel size | mm | Φ150×50 | Φ150×100 | Φ240×90 | Φ350×160 |
| Cylinder volume | L | 1 | 3 | 6.25 | 21.58 |
| Grinding amount | g | 200 | 400 | 1000 | 4000 |
| Feed particle size | mm | ≤3 | ≤3 | ≤3 | ≤3 |
| Discharge particle size | mm | ≤0.074 | ≤0.074 | ≤0.074 | ≤0.074 |
| Cylinder speed | r/min | 112 ± 2 | 112 ± 2 | 96 ± 2 | 62 ± 2 |
| Motor Power | kw | 0.25 | 0.25 | 0.55 | 1.1 |
| Dimensions | mm | 915×530 ×1160 | 915×750 ×1160 | 1050×640 ×1164 | 700×575 ×1190 |
| Weight | kg | 90 | 130 | 170 | 300 |
