Product Details:
|
| Name: | Ball (rod) Mill | Type: | XMGQ Type |
|---|---|---|---|
| Model: | Work Index | Purpose: | Grinding Work Index Of Various Ores |
| Usage: | Dry Frinding | Drum Size: | Φ305×305mm |
| Gridng Dnum Speed: | 70±0.5r/min | Motor Power: | 0.75kw |
| High Light: | 305mm Laboratory Grinding Mill,70R/min Laboratory Grinding Mill,indexable ball end mill grinding ores |
||

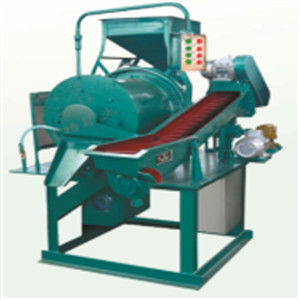

XMGQ type work index ball (rod) mill
Main uses and characteristics:
This machine is mainly used to measure the grinding work index of various ores, slag and other materials. This machine is the same as the general ball mill. The materials of a certain size and weight are put into the ball mill, and the ball mill is filled with steel balls of a certain size and a certain number, and dry grinding is carried out at a certain number of revolutions. After many tests, the grinding work index (kwh/t) was obtained
Parameter
| Main technical parameters of XMGQ power index ball(rod) mil | ||||
| Parameter item | Unit | XMGQ Φ305×305 | XMGQ Φ305×610 | |
| Work Index Ball Mill | Work Index Rod Mill | |||
| Drum size | mm | Φ305×305 | Φ305×610 | |
| Gridng dnum speed | r/min | 70±0.5 | 46±0.5 | |
| Motor Power | kw | 0.75 | 1.1 | |
| Buit-in steel ball weight | kg | 20.568 | 33.38 | |
| Buit-in steel ball | Diameter | Quantity | Quantity | |
| Φ38 | piece | 25 | 45 | |
| Φ32 | piece | 39 | 70 | |
| Φ25 | piece | 60 | 100 | |
| Φ22 | piece | 68 | 120 | |
| Φ19 | piece | 93 | 170 | |
| Feeding particle size | mm | ≤3.2 | ≤12.7 | |
| One feeding vohume | cm3 | 700 | 1250 | |
| Dimesions | mm | 1500×630×1100 | 930×610×1185 | |
| Weight | kg | 330 | 400 | |
