XCQS 50MM Single Dry Drum Magnetic Separator Tube For Geology

I'm Online Chat Now

XCQS 50MM Single Dry Drum Magnetic Separator Tube For Geology

XCQS 50MM Single Dry Drum Magnetic Separator Tube For Geology
XCQS 50MM Single Dry Drum Magnetic Separator Tube For Geology

Large Image :  XCQS 50MM Single Dry Drum Magnetic Separator Tube For Geology

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: Magnetic Separation Tube
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

XCQS 50MM Single Dry Drum Magnetic Separator Tube For Geology

Name: Magnetic Separation Tube Type: XCQSφ50
Model: Magnetic Purpose: Metallurgy, Geology
Tube: Davis Analysis Tubes Glass Tube Diameter: Φ50mm
Vibration Frequency: 70r/min Twice Pole Gap: 52mm
High Light:

50MM single drum magnetic separator


70r/min single drum magnetic separator


52mm gap dry drum magnetic separator

XCQSφ50 Magnetic Separation Tube


Main uses and characteristics:

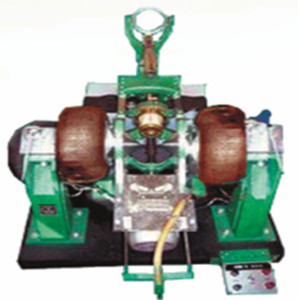

XCQS74-φ50, XCQS73-φ50 magnetic separation tubes are Davis analysis tubes, which are suitable for laboratories such as mining, metallurgy, and geology. It is a kind of equipment used to measure the content of strong magnetic components in strong magnetic ore in the process of beneficiation. The magnetic separation tube is installed between the two ends of the C-type electromagnet, and is equipped with a glass tube for reciprocating movement and swinging. When the sorted sample passes through the magnetic field, the magnetic part is near the tube wall. The non-magnetic part is washed out by the water during the mechanical movement.



Main technical parameters of XCQS type magnetic separation tube
Parameter item Unit XCQS-Φ25
Glass tube diameter mm Φ50
Vibration frequency r/min 70
Twice pole gap mm 52
Magnetic field strength GS 2500 (200KA/m)
Stepless adjustable
Sample particle size mm 0.5
Excitation power VA <500
Voltage V 50HZ 220 AC
Dimensions mm 1000×800×500
Supporting auxiliary machine Tower Excitation power 1 tower supply
Total weight kg 200


Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
