|Gold, Silver, Tungsten And So On
|Single Room Area:
0.25m2 Gravity Separation Machine,
25mm Gravity Separation Machine,
1.1kw laboratory jig concentrator

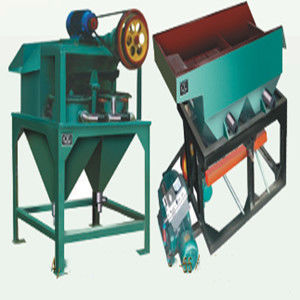

LTA down action, LTP side action jig
Main uses and features:
The side-moving diaphragm jig is basically remanufactured from the Denver type jig. The bed layer is relatively stable, and the selection effect is good. The diaphragm and transmission device are on one side of the jig, which is convenient for maintenance. The machine occupies a large area, has a large weight, and has a slightly higher power consumption. It is mostly used for roughing and selection operations, and the suitable particle size is 12-0.1mm. It is widely used in sorting, gold, silver, tungsten, tin, lead, zinc, manganese, iron and other heavy metal ores.
LTA type lower moving cone diaphragm jig: the diaphragm of the lower moving cone diaphragm jig is located between the conical part of the jig chamber tank body and the movable cone, so the power consumption is low and the heavy products are discharged smoothly. The disadvantage is that the bed is less loose, and the recovery of coarse-grained grades is poor when selecting wide-grade ore. Commonly known as Mihanoble type, it is generally used for roughing operations of ores below 6mm, and is widely used in the separation of gold, silver, tungsten, tin, lead, zinc, manganese, iron and other heavy metal ores
|Main technical parameters of lower-moving side-moving jig
|Single room area
|Feed particle size
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
Contact Person: Ms. Cherry
Name: Drum front shaker
Type: ISO-0805 seriesIt is suitable for screening metallurgical sinter and is an ideal equipment to replace manual screening, reduce the labor intensity of operators, and improve the accuracy and comparability of screening. And it has the characteristics of comp
Model: Drum front
Application: Laboratory Metallurgy
