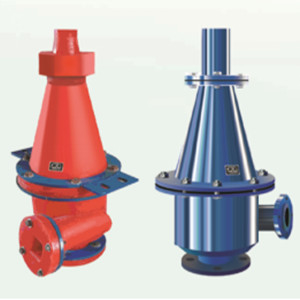

57kg Gravity Separation Machine Hydrocyclone

57kg Gravity Separation Machine Hydrocyclone
57kg Gravity Separation Machine Hydrocyclone

Large Image :  57kg Gravity Separation Machine Hydrocyclone

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: hydrocyclone
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

57kg Gravity Separation Machine Hydrocyclone

Name: Hydrocyclone Type: FX Series
Machine: Laboratory Mahine Purpose: Replacing Machine Inspection And Grading Machine
Feature: Grain Size For Grading Operations Weight: 57kg
Dimension: 320mm Processing Capacity: 2.4-1.5
High Light:

57kg Gravity Separation Machine


320mm Gravity Separation Machine


125mm hydrocyclone sand separator

FX series hydrocyclone


Main uses and characteristics:

Hydrocyclones are commonly used in metal concentrators in the second stage grinding or coarse concentrate regrinding process and closed-circuit use of mechanical classifiers to replace mechanical inspection classifiers and classify according to particle size.



Main technical parameters of FX series hydrocyclone
Item/Model FX-125 FX-150 FX-250 FX-300 FX-350
Overflow particle size (μm) 15-250 25-250 25-250 25-250 25-250
Processing capacity (m²/h) 2.4-1.5 4.8-54 6.5-61.2 24-60 24-90
Allowable overflow pressure(kg/cm²) 0.3-3 0.3-3 0.3-3 0.3-3 0.3-3
Cyclone Structural Parameters Diameter(mm) Φ125 Φ150 Φ250 Φ300 Φ350
  Cone Angle(mm) 20 20 20 20 20
  Cylinder height (degrees) 110 200 170 235 180
  Length of overflow pipe(mm) 107 130 163 210 215
  Feeding port area (mm) 25×10 40×10 50×20 75×25 80×35
  Sand discharge pipe diameter (mm) 15-30 15 35 50 25
Dimensions (mm) Length(mm) 320 594 540 575 575
  Width(mm) 260 380 475 550 690
  Height(mm) 648 899 1172 1444 1510
weight (kg) 57 128 205 240 280


Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.

57kg Gravity Separation Machine Hydrocyclone 0


FAQ to save your precious time!


Q1: What's the standard length of your profiles and tube?

A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.


Q2: What's your MOQ?

A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.


Q3: what is your payment terms?

A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.


Q4: What's the lead time for small order and mass production?

A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.


Q5: What certification do you have?

A: We have ISO 9001:2008 certificate.
