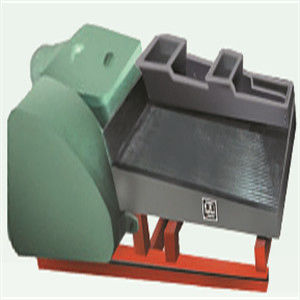

LY Gravity Separation Machine Gold Mining Shaker For Laboratory Mine Study

I'm Online Chat Now

LY Gravity Separation Machine Gold Mining Shaker For Laboratory Mine Study

LY Gravity Separation Machine Gold Mining Shaker For Laboratory Mine Study
LY Gravity Separation Machine Gold Mining Shaker For Laboratory Mine Study

Large Image :  LY Gravity Separation Machine Gold Mining Shaker For Laboratory Mine Study

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: Shaker
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

LY Gravity Separation Machine Gold Mining Shaker For Laboratory Mine Study

Name: Shaker Type: LY
Purpose: Laboratory Mine Study Material: Fine And Fine-grained Rare Metals
Feature: High Quality Concentrate Function: Use Together, Use Alone
Weight: 450kg Dimension: 3040X1050X1020
High Light:

450kg Gravity Separation Machine


3040MM Gravity Separation Machine


gold mining shaker for Laboratory Mine

LY Shaker for Laboratory Mine Study


Main uses and features:

This machine can be used in the laboratory for ore selectivity research, and is suitable for the separation of fine and fine-grained rare metals, ferrous metals, non-ferrous metals and precious metals and other ores and coal. It can be used as an independent beneficiation operation, and can be used in conjunction with other mineral processing machines such as jig, spiral concentrator, and centrifugal concentrator. The machine selects according to the specific gravity difference of the selected minerals and the stratification performance in the transverse water flow of the reciprocating asymmetrical and inclined bed surface. It has the characteristics of obvious zonation of minerals with different specific gravity on the bed surface, high quality of concentrate, and convenient operation and adjustment. The structure of the shaking table is divided into ore sand and ore slime.



Main tecanical parameters of LY type shaker
Parameter item Unit LY2100×1050 LY1100×500 LY1000×450
Bed size mm 2100×1050×850 1100×500×430 1000×450×400
Stroke mm 12~28 8~18 9~17
Flush /min 250~450 300~450 280~460
Laeral slop adjustment angle (0) 0~8 0~10 0~10
Feeding partical size ore sand mm ≤2 ≤2 ≤2
  Slime mm ≤0.074 ≤0.074 ≤0.074
Feeding concentration % 10~30 10~30 10~30
Processing capacity ore sand t/h 0.4~0.8 0.1~0.2 0.01~0.15
  Slime t/h 0.3~0.5 0.05~0.15 0.01~0.1
Water Consumption t/h 0.2~1 0.1~0.5 0.1~0.5
Motor Power kw 1.1 0.55 0.55
Dimensions mm 3040×1050×1020 1530×500×800 1430×450×800
Weight kg 450 150 130


Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.

LY Gravity Separation Machine Gold Mining Shaker For Laboratory Mine Study 0


FAQ to save your precious time!


Q1: What's the standard length of your profiles and tube?

A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.


Q2: What's your MOQ?

A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.


Q3: what is your payment terms?

A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.


Q4: What's the lead time for small order and mass production?

A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.


Q5: What certification do you have?

A: We have ISO 9001:2008 certificate.
