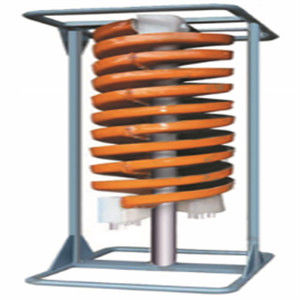

400mm 600mm Glass Fiber Reinforced Plastic Gravity Spiral Chute

I'm Online Chat Now

400mm 600mm Glass Fiber Reinforced Plastic Gravity Spiral Chute

400mm 600mm  Glass Fiber Reinforced Plastic Gravity Spiral Chute
400mm 600mm  Glass Fiber Reinforced Plastic Gravity Spiral Chute

Large Image :  400mm 600mm Glass Fiber Reinforced Plastic Gravity Spiral Chute

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: spiral chute
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

400mm 600mm Glass Fiber Reinforced Plastic Gravity Spiral Chute

Name: Spiral Chute Type: BLL Type
Mine: Iron Material: Select Fine-grained Metallic Minerals
Select Particle Size Range: φ600, φ400 Selection ≤0.03mm Weight: 90kg
Dimension: 700*700-2750 Production Capacity: 0.8-1..2t/h
High Light:

400mm gravity spiral chute


600mm gravity spiral chute


spiral gravity separation ISO9001

BLL type glass fiber reinforced plastic spiral chute


Main uses and characteristics:

BL type glass fiber reinforced plastic spiral chute is used for sorting fine-grained (including fine-grained) metal minerals, such as iron ore, ilmenite, chromite, pyrite, tungsten tungsten tin ore, niobium tantalum ore, Selection of gold placer, monazite, rutile, zircon and other metal and non-metal minerals with sufficient specific gravity difference. Effective particle size range for sorting: φ600, φ400 sorting ≤0.03 mm. There should be spiral chutes with different suitable parameters for roughing, selecting and sweeping.



Main technical parameters of BLL type glass fiber reinforced plastic spiral chute
Parameter item Unit BLL-Φ600 BLL-Φ400
Spiral dimenter mm Φ600 Φ400
Pitch mm 360 240
Number of screw heads head 1 1
Laps per head laps 5 5
Feeding partical size mm ≤0.3 ≤0.3
Feeding concentration % 20-40 20-40
Production capacity t/h 0.8-1.2 0.1-0.2
Dimensions mm 700×700×2750 460×460×1500
Weight kg 90 60


Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.

400mm 600mm  Glass Fiber Reinforced Plastic Gravity Spiral Chute 0


FAQ to save your precious time!


Q1: What's the standard length of your profiles and tube?

A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.


Q2: What's your MOQ?

A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.


Q3: what is your payment terms?

A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.


Q4: What's the lead time for small order and mass production?

A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.


Q5: What certification do you have?

A: We have ISO 9001:2008 certificate.
