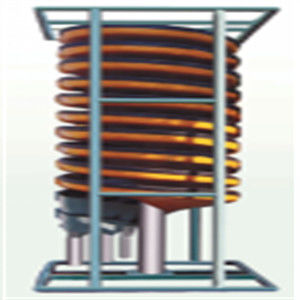

XLL 600mm Gravity Separation Machine Spiral Gold Concentrator

I'm Online Chat Now

XLL 600mm Gravity Separation Machine Spiral Gold Concentrator

XLL 600mm Gravity Separation Machine Spiral Gold Concentrator
XLL 600mm Gravity Separation Machine Spiral Gold Concentrator

Large Image :  XLL 600mm Gravity Separation Machine Spiral Gold Concentrator

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: Spiral Concentrator
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

XLL 600mm Gravity Separation Machine Spiral Gold Concentrator

Name: Spiral Concentrator Type: XLL-600
Mine: Tungsten Tin, Magnet Purpose: Select Coarse-grained (0.02-2.0mm) Metal Minerals
Weight: 120kg Dimension: φ600x2900
Number Of Turns: 6 Piece Spiral Diameter: φ600
High Light:

600mm Gravity Separation Machine


120kg Gravity Separation Machine


2900mm spiral gold concentrator

XLL-600 Spiral Concentrator
Main uses and features:
XLL-600 spiral concentrator can be used to separate relatively coarse (0.02 ~ 2.0mm) metal minerals, such as tungsten tin, magnet, titanium iron, road iron, gold placer and seashore placer; they are also It can be used for washing 4-6mm pulverized coal. Working principle: The spiral concentrator has 3-5 turns of spiral grooves with a certain inclination, and the cross-section is parabolic or elliptical. After the pulp is fed from the upper part, stratification occurs during the flow along the tank. Heavy minerals flow to the inner edge of the tank, and light minerals flow to the outer edge of the tank. The technical operating conditions that affect the spiral concentrator mainly include the diameter of the spiral, the cross-sectional shape of the spiral groove, the screw torque, the number of spiral turns, the feeding volume, the feeding concentration and the flushing water.

Main technical parameters of XLL spiral concentrator
Parameter item Unit XLL-Φ600
Spiral dimenter mm Φ600
Number of screw heads head 2
Number of turns piece 6
Processing granularity mm X6-0.074
Solid content g/l 150~400
Feeding concentration % 24~35
Production capacity Mineral t/h 0.8~1
  Pulverized coal t/h 2.2~3.0
Dimensions mm Φ600×2900
Weight kg 120

Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
XLL 600mm Gravity Separation Machine Spiral Gold Concentrator 0

FAQ to save your precious time!


Q1: What's the standard length of your profiles and tube?

A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.


Q2: What's your MOQ?

A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.


Q3: what is your payment terms?

A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.


Q4: What's the lead time for small order and mass production?

A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.


Q5: What certification do you have?

A: We have ISO 9001:2008 certificate.
