LX 400mm 300mm Mineral Processing Lab Equipment Centrifugal Concentrator

I'm Online Chat Now

LX 400mm 300mm Mineral Processing Lab Equipment Centrifugal Concentrator

LX 400mm 300mm Mineral Processing Lab Equipment Centrifugal Concentrator
LX 400mm 300mm Mineral Processing Lab Equipment Centrifugal Concentrator

Large Image :  LX 400mm 300mm Mineral Processing Lab Equipment Centrifugal Concentrator

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: Centrifugal Concentrator
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

LX 400mm 300mm Mineral Processing Lab Equipment Centrifugal Concentrator

Name: Centrifugal Concentrator Type: LX400×x300
Classification: Concentrator Model: Centrifugal
Mine: Tungsten Tin, Tantalum Niobium Weight: 0.12T
Drum Speed: 400~1000r/min Drum Diameter: φ400mm
High Light:

400mm mineral processing lab equipment


300mm mineral processing lab equipment


2.2kw lab Centrifugal Concentrator

LX400×x300 Centrifugal Concentrator
Main uses and characteristics:

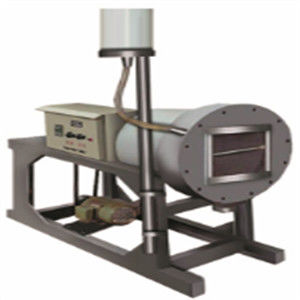

This machine is suitable for fine mud of -200 mesh metal mines, tungsten, tin, tantalum and niobium, rare earth ores, copper, lead and zinc ores. The main machine includes a drum, a chassis, a ore feeder, a ore feeding nozzle (upper and lower two), a ore filling nozzle, an ore receiving slot, a ore distributor, etc. The centrifugal concentrator works intermittently, but the ore breaking, rushing and sorting of the concentrate are carried out automatically by the command and execution agency.


The command body is a time relay, which can pass people or cut off the current within the specified time. The executive mechanism includes the ore breaking pipe in the ore hopper, the three-way valve and the membrane valve for controlling the flushing water, and the ore distributor for the reversing discharge of the concentrated tailings. They are driven by electromagnets respectively. When the specified separation time is reached, the broken ore pipe swings to the side of the return pipe, and the ore pulp no longer enters the drum. At the same time, the three-way valve cuts off the low-pressure water circuit, and the closed water pressure on the upper part of the membrane valve is removed, so the high-pressure water enters the drum through the membrane valve. At this time, the lower ore separator also swings to the side of the concentrate pipe, and the washed concentrate is introduced into the concentrate pipe. After the flushing is completed, each mechanism returns to its position and continues to classify the ore.

Main technical parameters of LX centrifugal concentrator
Parameter itemUnitLX400×300
Drum diametermmΦ400
Drum speedr/min400~1000
Feeding partical sizemm0.074
(-200 target 90%)
Feeding concentration%15~25
Dry ore processing capacityt/h0.01-0.02
Drum motor powerkw1.5-2.2

Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
