Product Details:
|
| Name: | Drum Low-intensity Magnetic Separator | Classification: | Separator |
|---|---|---|---|
| Model: | Drum Low-intensity Magnetic | Function: | Low-intensity |
| Industry: | Mining Engineering Laboratory | Material: | Fine Needle-like Or Fine-grained Ferromagnetic Substances |
| Separation Drum: | Φ400×240 | Throughput: | 20-50Kg/h |
| High Light: | 400MM Magnetic Separation Equipment,240MM Magnetic Separation Equipment,50Kg/h low intensity magnetic separator |
||

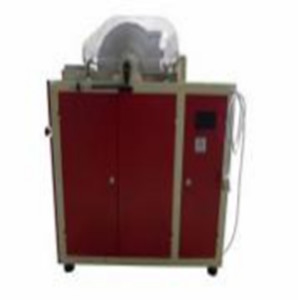

XCRS- Φ400x240 Drum Low-intensity Magnetic Separator
Introduction:
XCRS-Φ400x240 multi-purpose drum type weak magnetic separator is mainly used for mining engineering laboratories, intermediate test sites, concentrating plants and small concentrators to conduct small unit experiments, continuous experiments or production of magnetic ores such as magnetite and roasted magnetite when used. It can also be used in machinery, electronics, or other industrial sectors to recover powdered, fine needles or fine-grained ferromagnetic substances.
Technical Parameters:
| Item | Value | Unit | |
| Separation drum | Φ400×240 | mm | |
|
Max.Raised magnetic field strength |
105 |
A/m |
|
| (1250) | (Oe) | ||
| Max. Material inlet Width | 2.5 | mm | |
| Throughput | 20-50 | Kg/h | |
| Drum Speed | 33 | R/min | |
| Exciting Current | 0-5 | A | |
| Exciting Rated power | 875 | VA | |
|
Exciting coll Rated temperature |
<60 |
℃ |
|
| Motor | Type | AO2 7124 B5 | |
| Power | 370 | w | |
| Outline Size | 1068×636×982 | mm | |
| Weight | 200 | kg | |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
