Product Details:
|
| Name: | Diaphragm Jig | Type: | XCT Type |
|---|---|---|---|
| Model: | Diaphragm | Application: | Laboratory Chemical |
| Advantage: | High Performance | Attributes: | Jig |
| Jig Room Length: | 150mm | Jig Room Width: | 100mm |
| High Light: | diaphragm jig gravity separation machine,xct type gravity separation machine,150mm gravity separator machine |
||

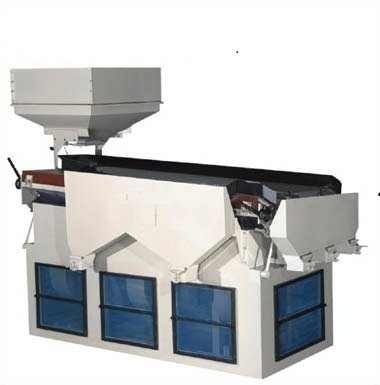

High Performance Laboratory Gravity Separation Machine 150mm
Main uses and features:
Suitable for XCT type diaphragm jig for gravity advantage. Gravity beneficiation depends on the different specific gravity of the ore and the different sedimentation velocity of the medium. Stratified separation of ore particle mixture is completed by difference in mineral weight. This product is the only company originally appointed by the Ministry of Mines and Mines, and implements industry standards. A diaphragm jig is suitable for analytical investigations of the formation of ferrous and non-ferrous metals, medicine, construction, and so on.
Parameter
| Main technical parameters of XCT type diaphragm Jig | |||
| Parameter item | Unit | XCT 100×150 | XCT 200×300 |
| Jig room length | mm | 150 | 300 |
| Jig room width | mm | 100 | 200 |
| Number of jigging rooms | 2 | 2 | |
| Jig room area | m² | 0.03 | 0.06 |
| Eccentric Max Stroke | mm | ≤20 | ≤32 |
| Feeding particle size | mm | ≤3 | ≤6 |
| Strokes per minute | l/min | 420 | 346 |
| Processing power | kg/h | 20-70 | ≤700 |
| Maximum amount of sieved water | L/S | 0.117 | 0.117 |
| Maximum amount of water to sieve | L/S | 0.1 | 0.1 |
| Motor Power | kw | 0.4 | 0.75 |
| Dimensions | mm | 752×520×1312 | 1110×520×1312 |
| Weight | kg | 150 | 175 |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
