Product Details:
|
| Name: | Zircon Sand Separation Machine Mining Spiral Classifier Sand Screw | Material: | Zircon Sand |
|---|---|---|---|
| Keyword: | Spiral Classifier | Purpose: | Laboratory Equipment |
| Classification: | Mining Spiral Classifier | Application: | Geological |
| Type: | Single | Appertain: | Laboratory |
| High Light: | nairy sand cone crusher,high power mining sand cone crusher |
||
Factory suppliers cheap Nairy cone crusher complete set of mining equipment high-power sand processing sand washing machine
Uses and characteristics.
This machine is suitable for dehydration, desliming, dry and wet classification of non-metallic ores in geological, metallurgical and other units and concentrator laboratories. With the help of the principle of different solid particle sizes, different specific gravity and different settling speed in liquid, the fine mineral particles float in the water and overflow, and the coarse mineral particles sink into the tank bottom, that is, they are pushed up by the screw, the powder in the mill is filtered separately, and then the coarse material is screwed into the feed inlet. The lifting device is divided into electric and manual.

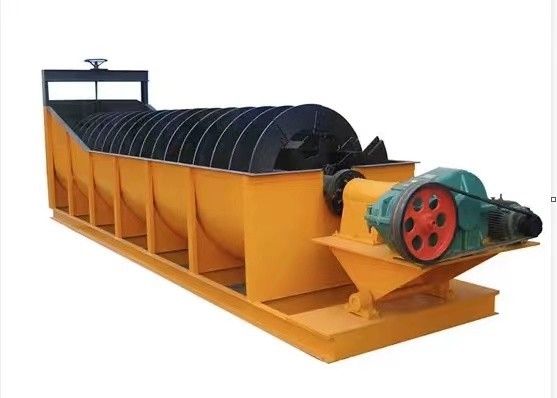

Another mechanical classifier is the spiral classifier. The spiral classifier such as the Akins classifier consists of a semi-cylindrical trough (a trough that is semicircular in cross-section) inclined to the horizontal. The trough is provided with a slow-rotating spiral conveyor and a liquid overflow at the lower end. The spiral conveyor moves the solids which settle to the bottom upward toward the top of the trough.
Parameter
| Main technical parameters of FG type single spiral classifier | ||||
| Project | Unit | FG-100×1200 | FG-150×1200 | FG-200×1650 |
| Spiral size | mm | Φ100×1200 | Φ150×1200 | Φ200×1650 |
| Pitch | mm | 80 | 100 | 120 |
| Groove inclination angle | (°) | 10°~30° | ||
| Spiral speed | r/min | 18,23,30 | ||
| Processing capacity | kg/h | 30 | 60 | 80 |
| Motor Power | Kw | 0.4,0.25 | 0.6,0.4 | 1.0,0.6 |
| Voltage | V | 220,380 | ||
| Dimensions | mm | 1500×320×700 | 1574×320×740 | 1600×350×750 |
| Weight | kg | 66 | 76 | 82 |
Product Description
Spiral classifier is one Types of Classifiers in Mineral Processing ,gold mining equipment,Zircon Sand Separation Machine, Silica Sand Washing Plant machine,Beach Sand Processing Plant machine, based on user requirements, it can be divided into single and double spiral classifier. Depend on specific gravity of solid particles, so different sedimentation velocity in a liquid principle, spiral classifier is a mechanical grading equipment. Feed mill can grind the powder level in the filter, and then use the coarse material spiral piece rotary vane screwed mill feeder to filter out fine material discharged from the overflow tube. Spiral Screw Classifier referred grader.
Company profile
Y&X Beijing Technology Co., Ltd. was founded in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise that integrates scientific research, design, new product development, manufacturing and production with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide a one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipment, including mineral processing equipment and mineral processing laboratory equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-ferrous mining, research departments in industries such as clothing factories, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
FAQ to save your precious time!
Q1: What's the standard length of your profiles and tube?
A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.
Q2: What's your MOQ?
A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.
Q3: what is your payment terms?
A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.
Q4: What's the lead time for small order and mass production?
A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.
Q5: What certification do you have?
A: We have ISO 9001:2008 certificate.
