Touchscreen Fire Assay Crucible Mixer 50 Crucible Batch Speed Control Sample Homogenizer
  • name
  • name

Touchscreen Fire Assay Crucible Mixer 50 Crucible Batch Speed Control Sample Homogenizer

MOQ: 1 Set
Price: Negotiate
Standard Packaging: Standard export packing is provided, and customized packing is available upon request.
Delivery Period: 15-30 working days
Payment Method: L/C,T/T
Supply Capacity: 50 Sets per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Certification
ISO 9001
Model Number
Fire Assay Crucible Mixer
Application:
Fire Assay Crucible Sample Mixing
Crucible Batch Capacity:
50 Pcs
Compatible Crucible Weight:
40g / 50g / 55g
Mixing Mechanism:
Worm Gear Reduction Drive
Max Rotation Speed:
60 Rpm
Max Setting Time:
60 Minutes
Control Mode:
Touchscreen HMI
Door Safety:
Interlock Protection Switch
Air Supply:
Pneumatic Switch, 0.4-0.5 MPa
Product Type:
Fire Assay Crucible Mixing Machine
Highlight:

Touchscreen Fire Assay Crucible Mixer

,

50 Crucible Batch Sample Homogenizer

,

Speed Control Fire Assay Mixer

Product Description
DPT50 Fire Assay Crucible Mixer with Customizable Batch Capacity and Touchscreen Control

The DPT50 Fire Assay Crucible Mixer is engineered for laboratories that require a balanced batch size combined with fully programmable mixing control. Its touchscreen human-machine interface allows operators to set rotation direction and rotation speed to match different sample types, while the 50-crucible batch capacity can be customized for growing throughput requirements.

Key Features
  • Customizable 50-Crucible CapacityMixes up to 50 crucibles in one batch, with batch quantity customizable to meet specific sample volumes.

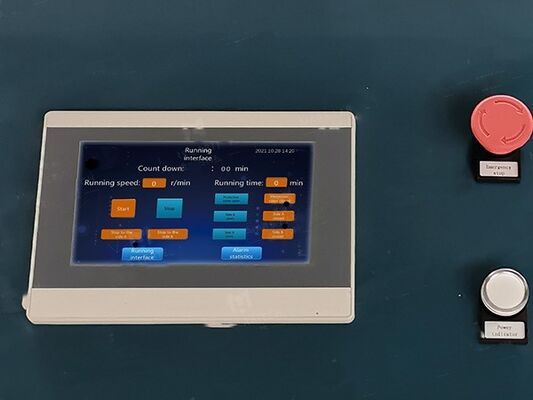

  • Touchscreen Control of Speed and DirectionOperators set rotation direction and rotation speed on the touchscreen interface for controlled and repeatable mixing.
  • Worm Gear Uniform MixingThe worm gear reduction mechanism delivers fast mixing speed, short cycle time, and a thoroughly even sample blend.
  • Interlock Safety DoorThe safety interlock switch keeps the door locked during operation and stops the machine instantly if the door is forced open.
Technical Specifications
Crucible Batch Capacity50 pcs
Compatible Crucible Weight40g / 50g / 55g
Mixing MechanismWorm Gear Reduction Drive
Max Rotation Speed60 rpm
Max Setting Time60 minutes
Control ModeTouchscreen HMI
Door SafetyInterlock Protection Switch
Air SupplyPneumatic Switch, 0.4–0.5 MPa
Voltage380V, 50Hz, 3-Phase
Power2.5 kW
Overall Dimension1695 × 1130 × 1235 mm

Note: Crucible batch capacity can be customized to the required sample volume. Please confirm crucible weights and batch quantity before ordering.

How It Works
  1. 1 Fire assay crucibles are loaded into the mixing chamber and the door is closed.
  2. 2 The touchscreen controller starts the programme, and the worm gear reduction drive rotates the chamber to blend the crucible contents.
  3. 3 The gear drive produces fast, uniform mixing, so large batches of crucibles can be homogenised within a short cycle time.
Applications
  • Gold and silver fire assay laboratories
  • Precious metal analysis laboratories
  • Mining and mineral testing laboratories
  • Metallurgical and refining laboratories
Frequently Asked Questions
Q1: How many crucibles can be mixed in one batch?

50 crucibles can be mixed in a single batch, and the quantity can be customized.

Q2: Can the mixing quantity be customized?

Yes. The standard batch capacity can be adjusted to suit the required sample volume.

Q3: Is the machine safe to operate?

The door is fitted with an interlock protection switch. The door cannot be opened while the machine runs, and the machine cannot start with the door open.

About Y&X

Y&X Beijing Technology Co., Ltd. supplies laboratory equipment for fire assay, mineral processing, sample preparation, and mineral analysis. We help customers select crucible mixers according to batch size, crucible specification, and laboratory conditions.
