Silicon Carbide Fire Assay Furnace Parts for High-Temperature Applications

MOQ:	1 Set
Price:	Negotiate
Standard Packaging:	Standard export packing, or customized packing as your request
Delivery Period:	15-30 working days
Payment Method:	L/C,T/T
Supply Capacity:	Standard and custom production available

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

ISO9001

Model Number

Fire Assay Furnace Parts

Product Type:

Fire Assay Furnace Parts

Material:

Silicon Carbide (SiC)

Component Type:

Furnace Chamber / Furnace Flue / Furnace Plate

Application:

Fire Assay Furnace

SiC Content:

70–85% / 90–95%

Customization:

Available

Highlight:

Silicon Carbide Fire Assay Furnace Parts

High-Temperature Fire Assay Furnace Parts

Fire Assay Laboratory Equipment Parts

Product Description

Product Overview

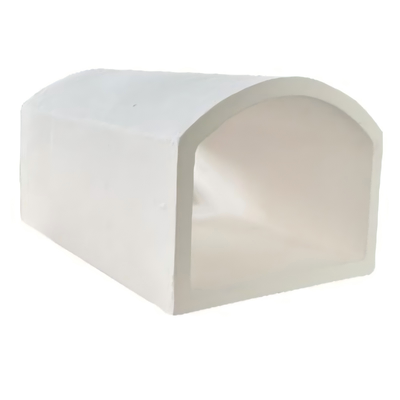

Our silicon carbide fire assay furnace parts include furnace chambers, flues and furnace plates engineered for high-temperature fire assay applications. These components are designed for furnace maintenance and replacement, helping maintain reliable furnace operation across repeated heating cycles.

Manufactured from silicon carbide materials, the components deliver high thermal conductivity, low thermal expansion, good thermal shock resistance and high mechanical strength. Multiple material grades and dimensions are available to suit different furnace configurations.

Whether you require replacement furnace chambers, flues or furnace plates, please contact us to confirm dimensions, material specifications and compatibility with your existing equipment.

Key Features

Silicon Carbide Material: Available in different SiC content grades to meet application requirements.
High-Temperature Resistance: Load softening temperature at 0.2 MPa reaches 1500°C or 1550°C, depending on material grade.
Good Thermal Shock Resistance: Low thermal expansion helps withstand temperature changes during furnace operation.
High Mechanical Strength: Room-temperature compressive strength varies by material grade.
Low Reheating Shrinkage: The higher-grade material has a reported reheating shrinkage below 0.1%.
Multiple Component Options: Furnace chambers, flues and furnace plates are available for compatible fire assay furnace configurations.

Physical and Chemical Properties

Property	SiC Grade 1	SiC Grade 2
Silicon Carbide (SiC) Content	70–85%	90–95%
Fe₂O₃ Content	<1.0%	<1.0%
Density	2.3–2.5 g/cm³	2.6–2.8 g/cm³
Room-Temperature Compressive Strength	40–60 MPa	70–80 MPa
Reheating Shrinkage	<0.5%	<0.1%
Load Softening Temperature at 0.2 MPa	1500°C	1550°C

Note: The material properties above are based on the supplied specifications. Please confirm the applicable grade and test conditions when ordering.

Models and Technical Specifications

Component	Model	Component Dimensions (mm)	Compatible Furnace Model	Furnace Plate Dimensions (mm)	Packing Dimensions (mm)
Furnace Chamber	4	300 × 480 × 245	50CF	450 × 250 × 15	700 × 600 × 430
Furnace Flue	4	265 × 65 × 200	50CF01	450 × 250 × 15	660 × 400 × 390
Furnace Chamber	5	535 × 610 × 350	100CF	560 × 480 × 25	720 × 435 × 800
Furnace Flue	5	475 × 75 × 250	100CF01	560 × 480 × 25	720 × 435 × 800
Furnace Chamber	7	660 × 610 × 360	25FF	590 × 560 × 25	840 × 440 × 800
Furnace Flue	6/7	Ø100 / Ø50 × 380	25FF01	590 × 560 × 25	840 × 440 × 800

Please confirm the component dimensions, furnace compatibility and packing details before ordering.

Applications

Fire assay laboratories
Gold and silver assay operations
Precious metal testing laboratories
High-temperature furnace maintenance
Replacement of worn or damaged furnace components

Inquiry and Customization

Please send us your required component type, dimensions, furnace model or drawings. We can help confirm the appropriate silicon carbide furnace parts for your application.
