Silicon Carbide Fire Assay Furnace Parts for High-Temperature Applications
  • name
  • name
  • name

Silicon Carbide Fire Assay Furnace Parts for High-Temperature Applications

MOQ: 1 Set
Price: Negotiate
Standard Packaging: Standard export packing, or customized packing as your request
Delivery Period: 15-30 working days
Payment Method: L/C,T/T
Supply Capacity: Standard and custom production available
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Certification
ISO9001
Model Number
Fire Assay Furnace Parts
Product Type:
Fire Assay Furnace Parts
Material:
Silicon Carbide (SiC)
Component Type:
Furnace Chamber / Furnace Flue / Furnace Plate
Application:
Fire Assay Furnace
SiC Content:
70–85% / 90–95%
Customization:
Available
Highlight:

Silicon Carbide Fire Assay Furnace Parts

,

High-Temperature Fire Assay Furnace Parts

,

Fire Assay Laboratory Equipment Parts

Product Description
Silicon Carbide Fire Assay Furnace Parts: Chambers, Flues & Furnace Plates

A complete range of silicon carbide furnace components — furnace chambers, furnace flues and furnace plates — for high-temperature fire assay furnaces. Multiple components, flexible size matching and silicon carbide construction support both routine furnace maintenance and full component replacement.

Product Overview

Silicon carbide fire assay furnace parts include furnace chambers, furnace flues and furnace plates designed for high-temperature fire assay furnaces. Because different furnace configurations require different component sizes and specifications, our parts are available in a variety of dimensions and can be matched to your furnace model, existing component dimensions or technical drawings.

Manufactured from silicon carbide material, these components deliver good thermal conductivity, low thermal expansion, high mechanical strength and excellent thermal shock resistance. They are well suited to furnace maintenance, component replacement and repeated fire assay operations.

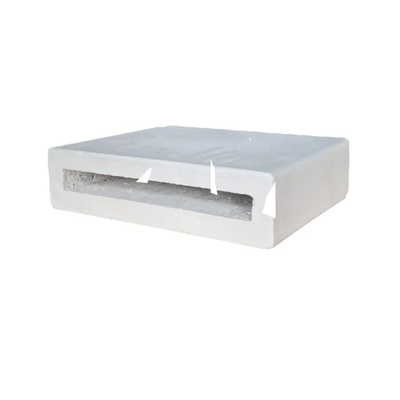

Silicon carbide fire assay furnace parts including furnace chamber, furnace flue and furnace plate for high-temperature assay furnaces
Key Features
  • Multiple Furnace Components — Furnace chambers, flues and furnace plates are available within a single product range.
  • Furnace Compatibility — Components are available for a range of fire assay furnace configurations.
  • Multiple Sizes — Various dimensions are offered to suit different furnace structures and replacement requirements.
  • Specification Matching — Furnace models, dimensions or technical drawings can be supplied for specification confirmation.
  • Silicon Carbide Material — Good thermal conductivity, low thermal expansion and resistance to thermal shock.
  • Replacement & Maintenance — Suitable for fire assay furnace component replacement and routine maintenance.
Physical and Chemical Properties
Property SiC Grade 1 SiC Grade 2
Silicon Carbide (SiC) Content 70–85% 90–95%
Fe₂O₃ Content <1.0% <1.0%
Density 2.3–2.5 g/cm³ 2.6–2.8 g/cm³
Room-Temperature Compressive Strength 40–60 MPa 70–80 MPa
Reheating Shrinkage <0.5% <0.1%
Load Softening Temperature at 0.2 MPa 1500°C 1550°C

Note: The material properties above are based on the supplied specifications. Please confirm the applicable grade and test conditions when ordering.

Models and Technical Specifications
Component Model Component Dimensions (mm) Compatible Furnace Model Furnace Plate Dimensions (mm) Packing Dimensions (mm)
Furnace Chamber 4 300 × 480 × 245 50CF 450 × 250 × 15 700 × 600 × 430
Furnace Flue 4 265 × 65 × 200 50CF01 450 × 250 × 15 660 × 400 × 390
Furnace Chamber 5 535 × 610 × 350 100CF 560 × 480 × 25 720 × 435 × 800
Furnace Flue 5 475 × 75 × 250 100CF01 560 × 480 × 25 720 × 435 × 800
Furnace Chamber 7 660 × 610 × 360 25FF 590 × 560 × 25 840 × 440 × 800
Furnace Flue 6/7 Ø100 / Ø50 × 380 25FF01 590 × 560 × 25 840 × 440 × 800

Please confirm the component dimensions, furnace compatibility and packing details before ordering.

Applications
  • Fire assay laboratories
  • Gold and silver assay operations
  • Precious metal testing laboratories
  • High-temperature furnace maintenance
  • Replacement of worn or damaged furnace components
Specification Confirmation

For replacement requirements, please provide any of the following:

  • Furnace model
  • Existing component dimensions
  • Component drawing
  • Photos with measurements

We can help confirm the appropriate furnace chamber, furnace flue or furnace plate specification before quotation.
