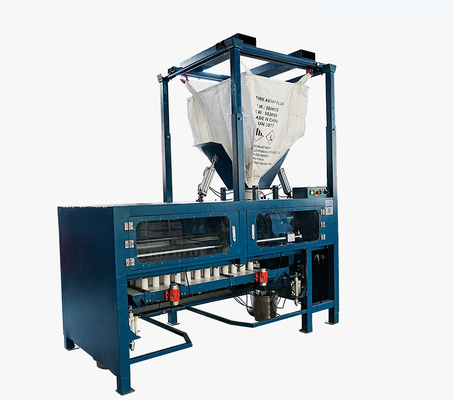

Automatic Flux Dispensing Machine 84 Crucible Batch 230V High Capacity Dosing Unit

Product Introduction

This high-capacity automatic flux dispensing machine is designed for fire assay laboratories that process large daily sample batches. It dispenses flux for up to 84 crucibles in a single operation.

This automatic flux dispensing machine automates the flux dosing step of fire assay sample preparation. Instead of manually weighing and adding flux into each crucible, the operator loads the crucibles and the machine dispenses a set amount of flux into 84 crucibles in a single operation. This greatly improves sample processing efficiency, reduces operator workload and helps avoid mistakes caused by manual handling.

The machine is built from durable components designed to withstand the daily demands of a busy assay laboratory. Its automated function requires only limited operator involvement, and the dosing work is carried out inside an enclosed space that prevents dust from escaping into the laboratory.

This model is intended for higher-throughput fire assay laboratories. With an 84-crucible batch capacity it shortens the flux preparation stage considerably, and the adjustable dosing gears allow operators to switch between different flux amounts for different assay recipes.

Key Features

1. High Throughput Batch Dispensing – Dispenses flux for 84 crucibles at one time, significantly increasing sample preparation efficiency.
2. Time and Labour Saving – Automatic operation reduces manual dosing work and lowers the risk of operator error.
3. Repeatable, Traceable Preparation – Consistent dosing supports repeatability and traceability of sample preparation.
4. Enclosed Dust-Proof Design – A closed working space prevents dust from escaping, keeping the laboratory environment safe and clean.
5. Adjustable Dosing Amounts – Two flux dispensing amount gears are provided, and dispensing amounts can be customized according to customer requirements.
6. Durable Construction – Built with wear-resistant parts for long-term use in demanding laboratories.

Technical Specifications

Working Principle

Prepared flux is loaded into the machine and the crucibles are positioned in the dispensing station. Once the machine is started, the enclosed dosing system delivers a set amount of flux into each crucible automatically. The dispensing amount can be adjusted between the available gears to suit the required assay recipe, and the whole process is completed inside a closed space to control dust.

How to Choose the Right Model

Selection mainly depends on the number of crucibles you process per batch and the crucible specification used in your laboratory. To recommend a suitable configuration, please advise: crucible quantity per batch, crucible specification (e.g. 30g / 40g / 50g / 55g / 65g), required dispensing amount per crucible, and your available power supply. Voltage and dosing amounts can be customized on request.

Applications

• Gold and silver fire assay laboratories
• Mining and mineral testing laboratories
• Metallurgical and refining laboratories
• Geological and analytical laboratories

Related Fire Assay Equipment

A complete fire assay laboratory usually works together with: Fire Assay Fusion Furnace · Fire Assay Cupellation Furnace · Clay Crucibles · Magnesia Cupels · Pouring Molds · Crucible Handling Tools. We can supply a full fire assay equipment solution – contact us for a combined quotation.

FAQ

Q1: How many crucibles can the machine dose in one operation?
The machine dispenses flux for 84 crucibles in a single operation.

Q2: Can the dispensing amount be adjusted?
Yes. The machine provides adjustable dosing gears, and dispensing amounts can be customized according to customer requirements.

Q3: Does the machine control dust during operation?
Yes. The dosing work is carried out in an enclosed space that prevents dust from escaping into the laboratory.

Q4: Can the voltage be customized?
Yes. Please advise your local power supply and we will confirm a suitable configuration.
